KS58555B

Features: · Flash Time selectable on the keyboard (100, 303, 604 mS)· Hands-Free and Hold functions· Tone/Pulse switchable· 16 digit indirect (Two-touch) 10 memory (PuIse : 16 digit, Tone : 15 digit)· 16 digit direct (One-touch) 4 memory (Pulse : 16 digit, Tone : 15 digit)· Uses 3.579545MHz Color ...

product image

KS58555B Picture
See larger image
SeekIC No. : 004387545 Detail

KS58555B: Features: · Flash Time selectable on the keyboard (100, 303, 604 mS)· Hands-Free and Hold functions· Tone/Pulse switchable· 16 digit indirect (Two-touch) 10 memory (PuIse : 16 digit, Tone : 15 digit...

KS58555B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
KS58555B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Flash Time selectable on the keyboard (100, 303, 604 mS)
· Hands-Free and Hold functions
· Tone/Pulse switchable
· 16 digit indirect (Two-touch) 10 memory (PuIse : 16 digit, Tone : 15 digit)
· 16 digit direct (One-touch) 4 memory (Pulse : 16 digit, Tone : 15 digit)
· Uses 3.579545MHz Color burst Crystal or ceramic resonator
· Pulse rate selectable. (10 pps, 20 pps)
· Make/Break ratio selectable (40 : 60, 33 : 66)
· Single tone enable for test
· Tone (T/·) key function (Pulse ® Tone)
· Redial function (Pulse : 32 digit, Tone : 31 digit)
· Pin compatible with KS58006, KS58012, and KS58550

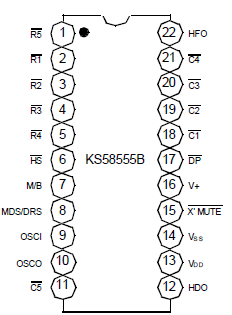

Pinout

Connection Diagram




Specifications

Characteristic
Symbol
Value
Unit
Supply Voltage

Input Voltage

Output Voltage

Power Dissipation

Operating Temperature

Storage Temperature
VDD

VI

VO

PD

TOPR

TSTG
- 0.3 ~ 7.0

- 0.2 ~ VDD + 0.3

- 0.3 ~ VDD + 0.3

500

- 20 ~ + 70

- 55 ~ + 150

V

V

V

V

mW








Description

The KS58555B is 15 memory Tone/pulse switchable dialer with 32 digit redial memory. 16 digit indirect 10 memory and 16 digit direct 4 memory are possible.

The Flash time is selectable on the keyboard.

Also, Hands-Free and Hold functions are controlled on the keyboard. The KS58555B can fulfill all the standards of each country.
