Product Details

Description



Features:

CPU
• SAM87RI CPU core
Memory
• 2/4-Kbyte internal program memory (ROM)
• 112-byte general purpose register area (RAM)
Instruction Set
• 41 instructions
• The SAM87RI core provides all the SAM87 core instruction except the word-oriented instruction, multiplication, division, and some one-byte instruction.
Instruction Execution Time
• 600 ns at 10 MHz fOSC (minimum cycles)
• 375 ns at 16 MHz fOSC (minimum cycles)
Interrupts
• 5 interrupt sources with one vector and one level
interrupt structure
General I/O
• Two I/O ports (Toatal 13 pins)
• One output only port (port 2)
• Bit programmable ports
Serial I/O
• One synchronius serial I/O module
• Selectable transmit and receive rates
Built-in reset Circuit (LVD)
• Low voltage detector for safe reset
Timer/Counters
• One 8-bit basic timer for watchdog function
• One 8-bit timer/counter for the time interval mode
PWM Module
• 12-bit PWM 1-ch (Max: 250 kHz)
• 6-bit base + 6-bit extension frame
A/D Converter
• Five analog input pins
• 10-bit conversion resolution
Buzzer Frequency Range
• 200 Hz to 20 kHz signal can be generated
Oscillation Frequency
• 1 MHz to 16 MHz external crystal oscillator
• Maximum 16 MHz CPU clock
• 4 MHz RC oscillator
Operating Temperature Range
• - 40°C to + 85°C
Operating Voltage Range
• 3.0 V to 5.5 V
OTP Interface Protocol Spec
• Serial OTP
Package Types
• 20-pin DIP-300
• 20-pin SOP-375
• 18-pin DIP-300
• 16-pin DIP-300


Pinout

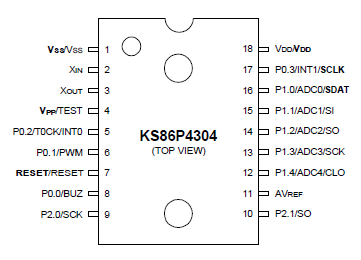

Connection Diagram

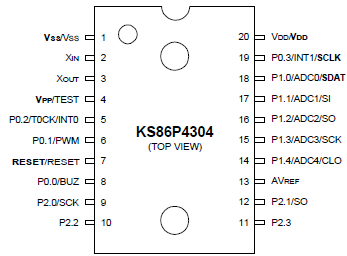

Connection Diagram

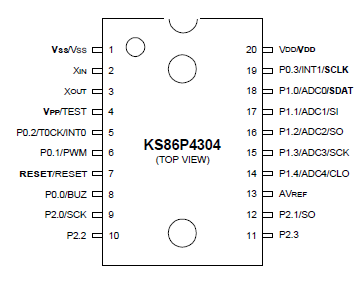

Connection Diagram

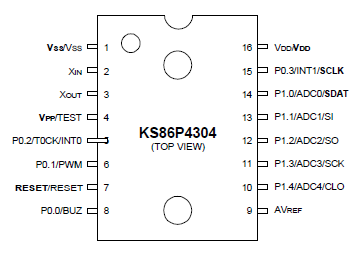

Connection Diagram



Specifications

Parameter
Symbol
Conditions
Rating
Unit
Supply voltage
VDD
0.3 to + 6.5
V
Input voltage
VI
All ports
0.3 to VDD +0.3
V
Output voltage
VO
All output ports
0.3 to VDD + 0.3
V
Output current High
IOH
One I/O pin active
25
mA
All I/O pins active
80
Output current Low
IOL
 One I/O pin active
+30
mA
All I/O pins active
+ 150
Operating temperature
TA
40 to + 85
Storage temperature
TSTG
65 to + 150



Description

The KS86P4304 single-chip CMOS microcontroller is the OTP (One Time Programmable) version of the S86C4302/C4304 microcontroller. It has an on-chip OTP ROM instead of masked ROM. The EPROM is accessed by serial data format.

The KS86P4304 is fully compatible with the KS86C4302/C4304, in function, in D.C. electrical characteristics, and in pin configuration. Because of its simple programming requirements, the KS86P4304 is ideal for use as an evaluation chip for the KS86C4302/C4304.
