KS88C2064

Features: CPU• SAM87 CPU coreMemory• 64-Kbyte internal program memory (ROM)• 192-Kbyte internal memory (ROM) for font data• 272-byte internal register file (Excluding LCD RAM)• 6144-byte data RAMInstruction Set• 78 instructions• IDLE and STOP instructions ...

product image

KS88C2064 Picture
See larger image
SeekIC No. : 004387592 Detail

KS88C2064: Features: CPU• SAM87 CPU coreMemory• 64-Kbyte internal program memory (ROM)• 192-Kbyte internal memory (ROM) for font data• 272-byte internal register file (Excluding LCD RAM...

KS88C2064 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
KS88C2064
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

CPU
• SAM87 CPU core
Memory
• 64-Kbyte internal program memory (ROM)
• 192-Kbyte internal memory (ROM) for font data
• 272-byte internal register file
(Excluding LCD RAM)
• 6144-byte data RAM
Instruction Set
• 78 instructions
• IDLE and STOP instructions added for
power-down modes
Instruction Execution Time
• 1.5 ms at 4 MHz fx (minimum)
• 183 ms at 32,768 Hz fxt
Interrupts
• Five interrupt levels and 15 interrupt sources
• 15 vectors (15 sources have a dedicated vector address)
• Fast interrupt processing feature (for one selected interrupt level)
I/O Ports
• Four 8-bit I/O ports (P0P3) for a total of 32-bit
programmable pins
• Eight input pins for external interrupts
• One output only pin for BUZ
Watch Timer
• Interval time: 3.91 ms, 1s at 32,768 Hz
• Four frequency outputs to BUZ pin and BUZ pin
• Clock source generation for LCD
LCD Controller/Driver
• 65 segments and 18 common terminals
• Internal resistor circuit for LCD bias
• Voltage doubler
• All dot can be switched on/off
Timers and Timer/Counters
• One programmable 8-bit basic timer (BT) for oscillation stabilization control or watchdog timer (software reset) function
• One 8-bit timer/counter (Timer 0) with three operating modes; Interval, Capture and PWM
• One 16-bit timer/counter (Timer 1) with two 8- bit timer/counter modes; Interval Power-Down Modes
• Idle mode (CPU clock stops)
• Stop mode (main oscillation and CPU clock stops)
Operating Temperature Range
• 40 to + 85
Operating Voltage Range
• 2.2 V to 4.5 V at 1 MHz fx
• 2.7 V to 4.5 V at 4 MHz fx
Package Type
• 128-pin QFP


Pinout

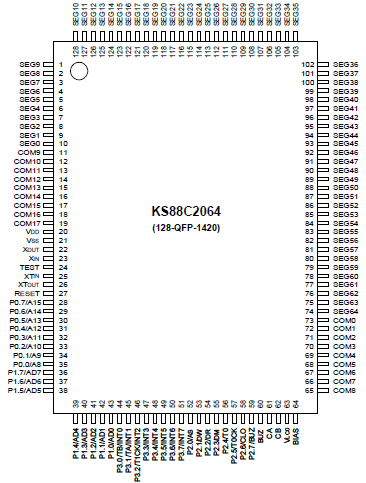

Connection Diagram


Description

The KS88C2064 single-chip CMOS microcontroller is fabricated using a highly advanced CMOS process and is based on Samsung's newest CPU architecture.

The KS88C2064 is the microcontroller which has 64-Kbyte mask-programmable ROM and 192-Kbyte mask ROM for font data.

Using a proven modular design approach, Samsung engineers developed the KS88C2064 by integrating the following peripheral modules with the powerful SAM87 core:
- Four programmable I/O ports, excluding one BUZ pin, for a total of 32 pins.
- Eight bit-programmable pins for external interrupts.
- One 8-bit basic timer for oscillation stabilization and watchdog functions (system reset).
- One 8-bit timer/counter and one 16-bit  timer/counter with selectable operating modes. - Watch timer for real time.

The KS88C2064 is a versatile microcontroller for data bank or dictionary. It is currently available in a  128-pin QFP package.
