KS8995MA
Suppliers
DataSheet
General Description

Purchase KS8995MA, In-stock KS8995MA From SeekIC.

MFG:KENDIN Package Cooled:QFP128 D/C:06+

KS8 Series Datasheet download

Five Points

Part Number: KS8995MA

MFG: KENDIN

Package Cooled: QFP128

D/C: 06+

Description: The KS8995MA is a highly integrated Layer 2 managed switch with optimized bill of materials (BOM) cost...

KS8995MA General Description

The KS8995MA is a highly integrated Layer 2 managed switch with optimized bill of materials (BOM) cost for low port count, cost-sensitive 10/100Mbps switch systems. It also provides an extensive feature set such as tag/port-based VLAN, quality of service (QoS) priority, management, MIB counters, dual MII interfaces and CPU control/data interfaces to effectively address both current and emerging Fast Ethernet applications.

The KS8995MA contains five 10/100 transceivers with patented mixed-signal low-power technology, five media access control (MAC) units, a high-speed non-blocking switch fabric, a dedicated address lookup engine, and an on-chip frame buffer memory.

All PHY units support 10BASE-T and 100BASE-TX.

In addition, two of the PHY units support 100BASE-FX (ports 4 and 5).

KS8995MA Maximum Ratings

Supply Voltage
(V_DDAR, V_DDAP, V_DDC) ............................. 0.5V to +2.4V
(V_DDAT, V_DDIO) ........................................ 0.5V to +4.0V
Input Voltage ............................................... 0.5V to +4.0V
Output Voltage ............................................ 0.5V to +4.0V
Lead Temperature (soldering, 10 sec.) ..................... 270
Storage Temperature (T_S) ....................... 55 to +150

KS8995MA Features

• Integrated switch with five MACs and five Fast Ethernet transceivers fully compliant to IEEE 802.3u standard
• Shared memory based switch fabric with fully nonblocking configuration
• 1.4Gbps high-performance memory bandwidth
• 10BASE-T, 100BASE-TX, and 100BASE-FX modes (FX in ports 4 and 5)
• Dual MII configuration: MII-Switch (MAC or PHY mode MII) and MII-P5 (PHY mode MII)
• IEEE 802.1q tag-based VLAN (16 VLANs, full-range VID) for DMZ port, WAN/LAN separation or inter-VLAN switch links
• VLAN ID tag/untag options, per-port basis
• Programmable rate limiting 0Mbps to 100Mbps, ingress and egress port, rate options for high and low priority, per-port basis in 32Kbps increments
• Flow control or drop packet rate limiting (ingress port)
• Integrated MIB counters for fully compliant statistics gathering, 34 MIB counters per port
• Enable/Disable option for huge frame size up to 1916 bytes per frame
• IGMP v1/v2 snooping for multicast packet filtering
• Special tagging mode to send CPU info on ingress packet's port value
• SPI slave (complete) and MDIO (MII PHY only) serial management interface for control of register configuration
• MAC-id based security lock option
• Control registers configurable on-the-fly (port-priority, 802.1p/d/q, AN...)
• CPU read access to MAC forwarding table entries
• 802.1d Spanning Tree Protocol
• Port mirroring/monitoring/sniffing: ingress and/or egress traffic to any port or MII
• Broadcast storm protection with % control global and per-port basis
• Optimization for fiber-to-copper media conversion
• Full-chip hardware power-down support (register configuration not saved)
• Per-port based software power-save on PHY (idle link detection, register configuration preserved)
• QoS/CoS packets prioritization supports: per port, 802.1p and DiffServ based
• 802.1p/q tag insertion or removal on a per-port basis (egress)
• MDC and MDI/O interface support to access the MII PHY control registers (not all control registers)
• MII local loopback support
• On-chip 64Kbyte memory for frame buffering (not shared with 1K unicast address table)
• Wire-speed reception and transmission
• Integrated look-up engine with dedicated 1K MAC addresses
• Full duplex IEEE 802.3x and half-duplex back pressure flow control
• Comprehensive LED support
• 7-wire SNI support for legacy MAC interface
• Automatic MDI/MDI-X crossover for plug-and-play
• Disable automatic MDI/MDI-X option
• Low power:
Core: 1.8V
I/O: 2.5V or 3.3V
• 0.18m CMOS technology
• Commercial temperature range: 0 to +70
• Industrial temperature range: 40 to +85
• Available in 128-pin PQFP package

KS8995MA Typical Application

• Broadband gateway/firewall/VPN
• Integrated DSL or cable modem multi-port router
• Wireless LAN access point plus gateway
• Home networking expansion
• Standalone 10/100 switch
• Hotel/campus/MxU gateway
• Enterprise VoIP gateway/phone
• FTTx customer premise equipment
• Managed Media converter

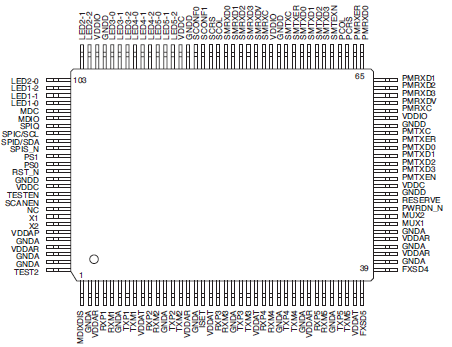

KS8995MA Connection Diagram

KS8995MA datasheet

KS8995MA
PDF/DataSheet Download

Datasheet: KS8995MA
File Size: 377479 KB
Manufacturer: MICREL [Micrel Semiconductor]
Click here to Download
