Part Number: L3100B



MFG: ST

Package Cooled: DIP



Description: Dedicatedtosensitivetelecomequipment protection,thisdevicecanprovidebothvoltage protectionandcurrentlimitationwithavery...


Urgent Purchase

L3100B General Description


Dedicatedtosensitivetelecomequipment protection,thisdevicecanprovidebothvoltage protectionandcurrentlimitationwithaverytight tolerance.

ItshighsurgecurrentcapabilitymakestheL3100Bareliableprotectiondeviceforveryexposed equipment,orwhenseriesresistorsareverylow.

Thebreakdownvoltagecanbeeasilyprogrammed byusinganexternalzenerdiode.

Amultipleprotectionmodecanalsobeperformed whenusingseveralzenerdiodes,providingeach lineinterfacewithanoptimizedprotectionlevel.

Thecurrentlimitingfunctionisachievedwiththe useofaresistorbetweenthegateNandthe cathode.Thevalueoftheresistorwilldetermine thelevelofthedesiredcurrent.

L3100B Maximum Ratings

Symbol
 Parameter
Value
Unit
IPP
 Peakpulsecurrent(seenote1)
0/1000s
8/20s
100
250
A
ITSM
 Nonrepetitivesurgepeakon-state
current
tp=10ms
50
A

SstgTj

oragetemperaturerange
Maximumoperatingjunctiontemperature
-40to+150
+150

TL
 Maximumleadtemperatureforsolderingduring10s
230

L3100B Features

`UNIDIRECTIONALFUNCTION
`PROGRAMMABLEBREAKDOWNVOLTAGE UPTO265V
`PROGRAMMABLECURRENTLIMITATION FROM50mATO550mA
`HIGHSURGECURRENTCAPABILITY IPP=100A10/1000s

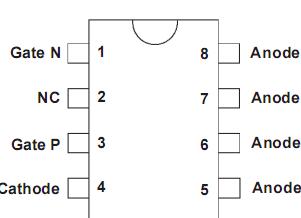

L3100B Connection Diagram
