Purchase L5486C-reliminary, In-stock L5486C-reliminary From SeekIC.
Part Number: L5486C-reliminary
Description: The EL5485C and EL5486C comparators are designed for operation n single supply and dual supply applications with 5V to ...
- Table of contents:
L5486C-reliminary
-
Suppliers
DataSheet
General Description
L5486C-reliminary General Description
The EL5485C and EL5486C comparators are designed for operation n single supply and dual supply applications with 5V to 12V between S+ and VS-. For single supplies, the inputs can operate from 0.1V elow ground for use in ground sensing applications.
The output side of the comparators can be supplied from a single supply f 2.7V to 5V. The rail-to-rail output swing enables direct onnection of the comparator to both CMOS and TTL logic circuits.
The latch input of the EL5485C and EL5486C can be used to hold the omparator output value by applying a low logic level to the pin.
The EL5485C is available in the 16-pin SO package and the EL5486C n the 24-pin QSOP package. Both are specified for operation over the ull -40°C to +85°C temperature range. Also available are single EL5185C), dual (EL5285C), and window comparator (EL5287C) ersions.
L5486C-reliminary Maximum Ratings
Analog Supply Voltage (VS+ to VS-) 12.6V
Digital Supply Voltage (VSD to GND) +7V
Differential Input Voltage [(VS-) -0.2V] to [(VS+) +0.2V]
Common-Mode Input Voltage (VS-) -0.2V] to [(VS+) +0.2V]
Latch Input Voltage -0.2V to [(VSD) +0.2V]
Storage Temperature Range -65°C to +150°C
Ambient operating Temperature -40°C to +85°C
Operating Junction Temperature 125°C
Power Dissipation TBDmW
ESD Voltage 2kV
Digital Supply Voltage (VSD to GND) +7V
Differential Input Voltage [(VS-) -0.2V] to [(VS+) +0.2V]
Common-Mode Input Voltage (VS-) -0.2V] to [(VS+) +0.2V]
Latch Input Voltage -0.2V to [(VSD) +0.2V]
Storage Temperature Range -65°C to +150°C
Ambient operating Temperature -40°C to +85°C
Operating Junction Temperature 125°C
Power Dissipation TBDmW
ESD Voltage 2kV
L5486C-reliminary Features
4ns typ. propagation delay
5V to 12V input supply
+2.7V to +5V output supply
True-to-ground input
Rail-to-rail outputs
Separate analog and digital upplies
Active low latch
Single (EL5185C) available
Dual (EL5285C) available
Window available (EL5287C)
Pin-compatible 8ns family vailable (EL5x81C, EL5283C & L5482C)
5V to 12V input supply
+2.7V to +5V output supply
True-to-ground input
Rail-to-rail outputs
Separate analog and digital upplies
Active low latch
Single (EL5185C) available
Dual (EL5285C) available
Window available (EL5287C)
Pin-compatible 8ns family vailable (EL5x81C, EL5283C & L5482C)
L5486C-reliminary Typical Application
Threshold detection
High speed sampling circuits
High speed triggers
Line receivers
PWM circuits
High speed V/F converters
High speed sampling circuits
High speed triggers
Line receivers
PWM circuits
High speed V/F converters

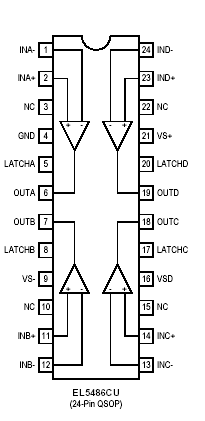

L5486C-reliminary Connection Diagram
