Part Number: L6615N
MFG: ST
D/C: 03+
Description: This controller IC is specifically designed toachieve load sharing of paralle...
- Table of contents:
L6615N
-
Suppliers
DataSheet
General Description
L6615N General Description
This controller IC is specifically designed to achieve load sharing of paralleled and independent power supply modules in distributed power systems, by adding only few external components. Current sharing is achieved through a single wire connection (share bus) common to all of the paralleled modules.
L6615N Maximum Ratings
| Symbol | Pin | Parameter | Value | Unit |
| VCC | 8 | Supply Voltage (*) (ICC<50mA) | selflimit | V |
| ICS+, ICS- | Sense pin current | 10 | mA | |
| VCS-,VCS+,VSH, VADJ, VCGA |
2,3,6,4,7 | -0.3 toVCC | V | |
| VCOMP | 5 | Error amplifier output | -0.3 to1.5 | V |
| (VCS+) - (VCS-) | Differential input voltage (VCS+ from0Vto 22V) | -0.7 to 0.7 | V | |
| Ptot | Total power dissipation @ Tamb = 70°C SO8 DIP8 |
0.45 0.6 |
W | |
| Tj | Junction temperature range | -40 to+125 | °C | |
| Tstg | Storage temperature | -55 to+150 | °C |
All voltages are with respect to pin 1. Currents are positive into, negative out of the specified terminal.
(*) Maximum package power dissipation limits must be observed
L6615N Features
` SSI SPECS COMPLIANT
` HIGH/LOW SIDE CURRENT SENSING
` FULLY COMPATIBLE WITH REMOTE OUTPUT VOLTAGE SENSING
` FULL DIFFERENTIAL LOW OFFSET CURRENT SENSE
` 2.7V TO 22V VCC OPERATING RANGE
` 32k SHARE SENSE AMPLIFIER INPUT IMPEDANCE
` HYSTERETIC UVLO
` HIGH/LOW SIDE CURRENT SENSING
` FULLY COMPATIBLE WITH REMOTE OUTPUT VOLTAGE SENSING
` FULL DIFFERENTIAL LOW OFFSET CURRENT SENSE
` 2.7V TO 22V VCC OPERATING RANGE
` 32k SHARE SENSE AMPLIFIER INPUT IMPEDANCE
` HYSTERETIC UVLO
L6615N Typical Application
· DISTRIBUTED POWER SYSTEMS
· HIGH DENSITY DC-DC CONVERTERS
· (N+1) REDUNDANT SYSTEMS, N UP TO 20
·SMPS FOR (WEB) SERVERS
· HIGH DENSITY DC-DC CONVERTERS
· (N+1) REDUNDANT SYSTEMS, N UP TO 20
·SMPS FOR (WEB) SERVERS

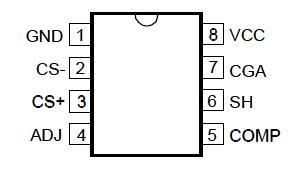

L6615N Connection Diagram
L6615N
PDF/DataSheet Download
- Datasheet: L6615N
- File Size: 401745 KB
- Manufacturer: STMICROELECTRONICS [STMicroelectronics]
- Click here to Download
