Product Details

Description



Features:

·90V BCD MIXED TECHNOLOGY
·SO24 PLASTIC SMD PACKAGE
·4.5 TO 13.2V OPERATIVE VOLTAGE
·±25 TO ±35V OUTPUT VOLTAGE RANGE SELECTABLE BY EXTERNAL RESISTORS
·FULL-WAVE RESONANT DC-DC CONVERTER USING SINGLE COIL FOR DUAL HIGH VOLTAGE GENERATOR WITH OUTPUT SLEW RATE CONTROL AND SELF CURRENT LIMITING FOR LOW EMI
·±35V OR 0/+70V OPERATIVE VOLTAGE
·DRIVING CONFIGURATION MODES:
   1. SINGLE ENDED VOLTAGE MODE
   2. DIFFERENTIAL VOLTAGE MODE
   3. SINGLE ENDED CHARGE MODE
·DOUBLE OPERATIONAL AMPLIFIERS WITH 500KHZ GAIN BANDWIDTH PRODUCT AND LOAD DRIVING CAPABILITY FROM 0.4nF UP TO 24nF
·ANALOG VOLTAGE SHIFTING CIRCUITRY




Application

·INTERNAL 2.5V VOLTAGE REFERENCE
·POWER SAVING SLEEP MODE
·USER SPECIFIED INPUT REFERENCE (2.25V DC)


Pinout

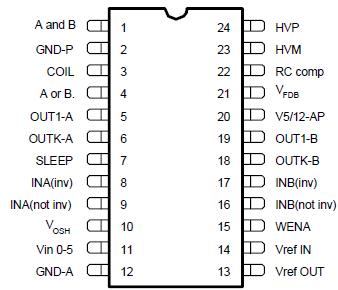

Connection Diagram


Specifications

Symbol Parameter Value Unit
V512 Supply voltage pin 17 referred to Ground 14 V
HVP Positive high voltage referred to HVM 75 V
HVM Negative high voltage referred to Ground -38 V
IN A&B Amplifier input voltage common mode ±6 V
V Maximum difference between pin 20 and pins 8, 9, 16 & 17 17 V
Tamb Operative Ambient Temperature -20 to +80 °C
Tstg Storage Temperature -40 to +125 °C



Description

The L6660 is a piezoelectric actuator driver.
