Purchase L7824CV, In-stock L7824CV From SeekIC.

MFG:STMicroelectronics  Category:Integrated Circuits (ICs)

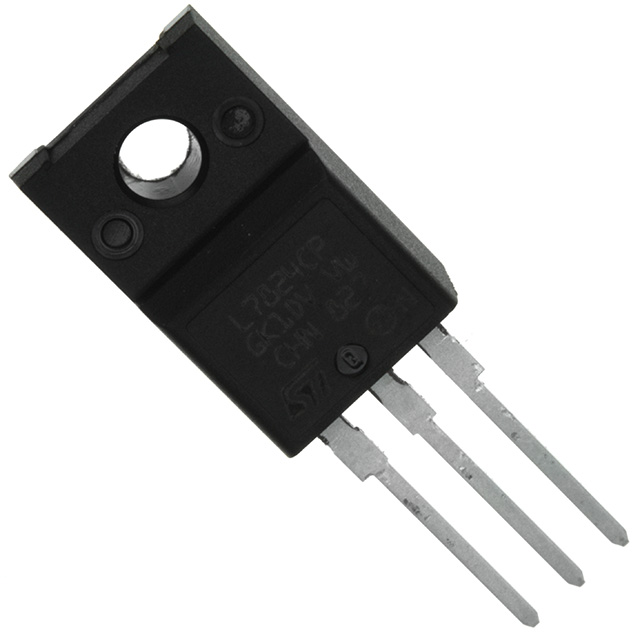

L7824CV

L78 Series Datasheet download

Five Points

Part Number: L7824CV

Category: Integrated Circuits (ICs)

MFG: STMicroelectronics





Descriptions: IC REGULATOR POS 24V TO-220

Price Break

1
10
100
250
500
1000
2500

Unit Price

.73000
.54600
.42250
.33800
.27300
.20800
.19500

Extended Price

0.73
5.46
42.25
84.50
136.50
208.00
487.50

(All prices are in USD) Prices for reference only
Urgent Purchase

L7824CV General Description

IC REGULATOR POS 24V TO-220

L7824CV Parameters

Technical/Catalog InformationL7824CV
VendorSTMicroelectronics
CategoryIntegrated Circuits (ICs)
Regulator TypeSingle Output
Package / CaseTO-220-3 (Straight Leads)
PackagingTube
Regulator TopologyPositive Fixed
Current - Output1.5A
Voltage - Output24V
Operating Temperature-55°C ~ 150°C
Voltage - Input27 ~ 38 V
Number of Regulators1
Current - Limit (Min)-
Current Short Circuit (Isc)150mA
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names L7824CV
L7824CV
497 1460 5 ND
49714605ND
497-1460-5

L7824CV datasheet

L7824CV
PDF/DataSheet Download

  • Datasheet: L7824CV
  • File Size: 1844744 KB
  • Manufacturer: STMICROELECTRONICS [STMicroelectronics]
  • Click here to Download
