L9386MD

On Time (Max) :
Off Time (Max) :
Mounting Style : SMD/SMT
Number of Outputs : 2
Maximum Operating Temperature : + 150 C
Package / Case : SO-20
Operating Supply Voltage : 4.5 V to 45 V
Supply Current (Max) : 15 mA
On Resistance (Max) : 0.5 Ohms


Features:

`DUAL POWER LOW SIDE DRIVER WITH 2 x 5A
`LOW R_DSON TYPICALLY200m @T_J = 25°C
`INTERNAL OUTPUT CLAMPING DIODES V<sub>FB</sub>=50V FOR INDUCTIVE RECIRCULATION
`LIMITED OUTPUT VOLTAGE SLEW RATE FOR LOW EMI
`mP COMPATIBLEENABLE AND INPUT
`WIDE OPERATING SUPPLY VOLTAGE RANGE 4.5V TO 45V
`REAL TIME DIAGNOSTIC FUNCTIONS
   - OUTPUT SHORTED TO GND
   - OUTPUT SHORTED TO VSS
   - OPENLOAD
   - LOADBYPASS
   - OVERTEMPERATURE
`DEVICE PROTECTION FUNCTIONS
   - OVERLOADDISABLE
   - REVERSE BATTERY UP TO -16V@ V_S
   - THERMAL SHUTDOWN

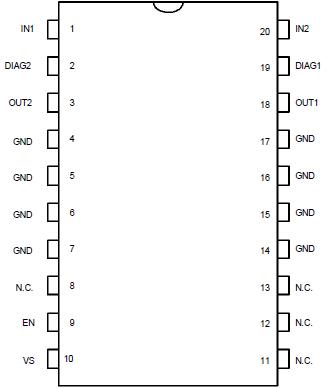

Pinout




Specifications

Symbol	Parameter	Value	Unit
VSDC	DC supply voltage	-16 to 45	V
VSTR	Transient supply voltage ( t 500ms )	60	V
VIN,EN	Input voltage ( | | 10mA | )	-1.5 to 6	V
VDDC	Diagnostic DC output voltage ( | | 50mA | )	-0.3 to 16	V
VODC	DC output voltage	45	V
VOTR	Transient output voltage ( RL 4 )	60	V
IO	Output load current	internal limited
IOR	Reverse output current limited by load	-4	A
EO	Switch-off energy for inductive loads (tEO = 250s, T = 5ms)	50	mJ
TjEO	Junction temperature during switch-off t = 30min	175	°C
Tj	Junction temperature	-40 to +150	°C
Ta	Storage temperature	-55 to +150	°C

Description

The L9386MD is a monolithic integrated dual low side driver realized in an advanced Multipower- BCD mixed technology. It is especially intended to drive valves in automotive environment. Its inputs are mP compatible for easy driving. Particular care has been taken to protect the L9386MD against failures, to avoid electro-magnetic interferences and to offer extensive real time diagnostic.

Parameters:

Technical/Catalog Information	L9386MD
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Package / Case	20-SOIC (7.5mm Width)
Mounting Type	Surface Mount
Type	Low Side
Voltage - Supply	4.5 V ~ 32 V
On-State Resistance	200 mOhm
Current - Output / Channel	-
Current - Peak Output	7A
Packaging	Tube
Input Type	Non-Inverting
Number of Outputs	2
Operating Temperature	-40°C ~ 150°C
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	L9386MD L9386MD 497 3928 5 ND 49739285ND 497-3928-5
