Purchase L9686, In-stock L9686 From SeekIC.
MFG:ST Package Cooled:DIP
Part Number: L9686
MFG: ST
Package Cooled: DIP
Description: The L9686 is a two frequency oscillator particularly suitable as relay driver for flashing light contr...
- Table of contents:
L9686
-
Suppliers
DataSheet
General Description
L9686 General Description
The L9686 is a two frequency oscillator particularly suitable as relay driver for flashing light control in automotive applications. The circuit may be also used for other warning lamps like "handbrake on" etc. The lamp failure detection is given by doubling the flash repetition frequency. The L9686 is supplied in minidip 8-lead and SO8 plastic
packages.
L9686 Maximum Ratings
| Symbol | Parameter | Value | Unit |
| VS | Transient Peak Supply Voltage (R3 220): Load Dump: 5ms trise 10ms f Fall Time Constant = 100ms Rsource 0.5W Field Decay: 5ms tfall 10ms, Rsource r Rise Time Constant = 33ms Low Energy Spike: trise = 1s, tfall = 2ms, Rsource 10 |
80 80 ± 100 |
V V V |
| Tj, Tstg | Junction and Storage Temperature Range | 55 to 150 | °C |
L9686 Features
·RELAY DRIVER IN CAR DIRECTION INDICATORS
·FLASH FREQUENCY DOUBLES TO INDICATE LAMP FAILURE
·DUMP PROTECTION ( ± 80 V)
·REVERSE BATTERY PROTECTION
·FLASH FREQUENCY DOUBLES TO INDICATE LAMP FAILURE
·DUMP PROTECTION ( ± 80 V)
·REVERSE BATTERY PROTECTION

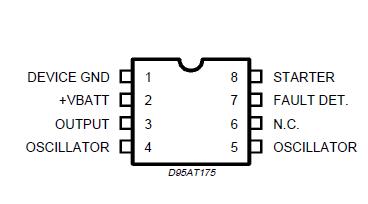

L9686 Connection Diagram
L9686
