Part Number: L9700



MFG: ST

Package Cooled: DIP



Description: The L9700 is a monolithic circuit which is suited for input protectionand voltage clamping purpose.

Urgent Purchase

L9700 General Description


The L9700 is a monolithic circuit which is suited for input protectionand voltage clamping purpose.

The limiting function is referred to ground and the positive supply voltage.

One single element contains six independentchannels.

Very fast speed is achieved by internal feedback and the application of a new vertical PNP-transistor with isolated collector.

L9700 Maximum Ratings

Symbol Parameter Value Unit
VCC Supply Voltage 20 V
IIN Input Current per Channel 30 mA
Tj, Tstg Junction and Storage Temperature 55 to 150 °C
Ptot Total Power Dissipation (Tamb = 85°C) 650 mW

Note: The circuit is ESD protected according to MIL-STD-883C

L9700 Features

·HIGH PERFORMANCE CLAMPING AT GROUND AND POSITIVE REFERENCE VOLTAGE
·FAST ACTIVE CLAMPING
·OPERATINGRANGE 4.75 - 5.25 V
·SINGLEVOLTAGEFORSUPPLYAND POSITIVE REFERENCE
·LOWQUIESCENT CURRENT
·LOW INPUT LEAKAGECURRENT

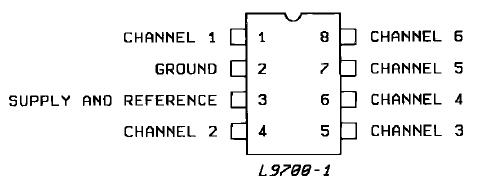

L9700 Connection Diagram

L9700 Connection Diagram
