Product Details

Description

Features:

`25A PEAK OUTPUT CURRENT
`RON = 100m
`DIAGNOSTICAND PROTECTION FUNCTIONS
`P COMPATIBLE
`GROUNDED CASE
`INRUSH CURRENT LIMITING CIRCUIT

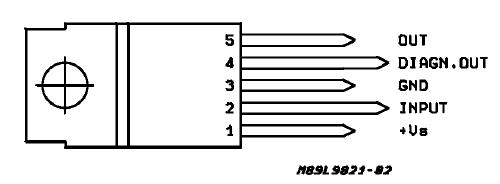

Pinout

Connection Diagram

Specifications

Symbol	Parameter	Value
V_S	Max Forward Voltage Positive Transient Peak Voltage (dump :f fall time constant = 100ms, 5ms trise 10ms, Rsource 0.5) Resistive Load Inductive Load	50Vdc 60V 50V (*)
	Reverse Input Voltage	0.3Vdc
V_I V₄ V₅	Input Voltage Pin 2 (to GND) Pin 4 Voltage Pin 5 Voltage (to GND) (to GND)	0.3V / + Vs (Vs < 20V) 0.3V / + Vs (Vs < 20V) 3V / + Vs (Vs < 20V)
I₁ I₂I₄I₅	Pin 1 Current Pin 2 Current (forced) Pin 4 Current (sink) Pin 5 Current	Internally Limited 0.5mA 10mA Internally Limited
P_TOT	Power Dissipation	Internally Limited
T_J, T_STG	Junction and Storage Temperature Range	55°C to + 150°C

* due to the negative voltage at the output during the switching off.

Description

The L9821 High Side Driver realized with Multipower - BCDmixed technology, drives resistive or inductive loads with one side connectedto ground.

The input control is TTL compatible and a diagnostic output provides an indication of load (open and short) and device status (thermal and overvoltage shutdown).Onchip thermalprotectionandshort circuit protection are provided.

The L9821 is assembled in the Pentawattpackage with the tab connected to the ground terminal.
