MFG:N/A Package Cooled:NA/ D/C:09+
MFG: N/A
Package Cooled: NA/
D/C: 09+
Description: L9825 is a Octal Low-Side Driver Circuit, dedicated for automotive applications. Output voltage clampi...
L9825 is a Octal Low-Side Driver Circuit, dedicated for automotive applications. Output voltage clamping is provided for flyback current recirculation, when inductive loads are driven. Chip Select and Serial Peripheral Interface for outputs control and diagnostic data transfer. Parallel Control inputs for two outputs.

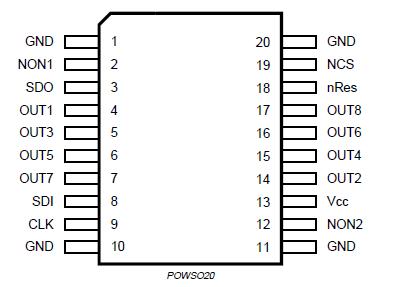

| Symbol | Parameter | Value | Unit |
| VCC | Supply voltage | -0.3 to 7 | V |
| Inputs and data lines (NONx, NCS, CLK, SDI, nRes) | |||
| VIN | Voltage (NONx, NCS, CLK, SDI) | -0.3 to 7 | V |
| VIN | Voltage (nRes) | -0.3 to 7 | V |
| IIN | Protection diodes current 1) (T 1ms) |
-20 to 20 | mA |
| Outputs (Out1 ... Out8) | |||
| VOUTc | Continuous output voltage | -1.0 to 45 | V |
| IOUT | Output current 2) | -3 to 2.05 | A |
| EOUTcl | Output clamp energy (IOUT 0.5A) | 20 | mJ |
Notes: 1. All inputs are protected against ESD according to MIL 883C; tested with HBM at 2KV. It corresponds to a dissipated energy E 0,2mJ.
2. Transient pulses in accordance to DIN40839 part 1, 3 and ISO 7637 Part 1, 3.
L9825
PDF/DataSheet Download
