Purchase L9826, In-stock L9826 From SeekIC.
MFG:ST Package Cooled:SOP
Part Number: L9826
MFG: ST
Package Cooled: SOP
Description: The L9826 is a Octal Low-Side Driver Circuit, dedicated for automotive applications. Output voltage cl...
- Table of contents:
L9826
-
Suppliers
DataSheet
General Description
L9826 General Description
The L9826 is a Octal Low-Side Driver Circuit, dedicated for automotive applications. Output voltage clamping is provided for flyback current recirculation, when inductive loads are driven. Chip Select and Serial Peripheral Interface for outputs control and diagnostic data transfer. Parallel Control inputs for two outputs.
L9826 Maximum Ratings
For voltages and currents applied externally to the device
| Symbol | Parameter | Test Condition | Min. | Typ. | Max. | Unit |
| VCC | Supply voltage | -0.3 | 7 | V | ||
| Inputs and data lines (NONx, NCS, CLK, SDI, nRes) | ||||||
| VIN | Voltage (NONx, NCS, CLK, SDI, nRes) |
-0.3 | 7 | V | ||
| IIN | Protection diodes current 1) | T 1ms | -20 | 20 | mA | |
| Outputs (Out1 ... Out8) | ||||||
| VOUTc | Continuous output voltage | -1,0 | 45 | V | ||
| IOUT | Output current 2) | -2 | 1,0 | A | ||
| EOUTcl | Output clamp energy | IOUT 250mA | 10 | mJ | ||
Notes: 1. All inputs are protected against ESD according to MIL 883C; tested with HBM at 2KV. It corresponds to a dissipated energy E £ 0,2mJ.
2. Transient pulses in accordance to DIN40839 part 1, 3 and ISO 7637 Part 1, 3.
L9826 Features
` OUTPUTS CURRENT CAPABILITY UP TO 500mA, RON = 2.2 AT TJ = 25°C
` PARALLEL CONTROL INPUTS FOR OUTPUTS 1 AND 2
` SPI CONTROL FOR OUTPUTS 1 TO 8
` RESET FUNCTION WITH RESET SIGNAL AT NRES PIN OR UNDERVOLTAGE AT VCC
` - INTRINSIC OUTPUT VOLTAGE CLAMPING AT TYP. 50V
` OVERCURRENT SHUTDOWN AT OUTPUTS 3 TO 8
` SHORT CIRCUIT CURRENT LIMITATION AND SELECTIVE THERMAL SHUTDOWN AT OUTPUTS 1 AND 2
` OUTPUT STATUS DATA AVAILABLE ON THE SPI

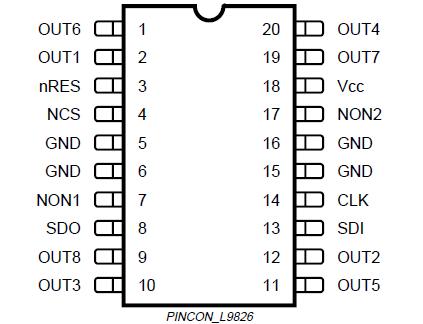

L9826 Connection Diagram
L9826
