L98SI General Description


The L98SI is anoctal low side solenoiddriver rea lized in Multipower-BCDtechnologyparticularlysuited for driving lamps, relays and solenoids in indu strial environment.The L98SIDMOSoutputshave very low power consumption.

Data is transmitted serially to the device using the Serial Peripheral Interface (SPI) protocol.

The L98SI features the outputs status monitoring function.

L98SI Maximum Ratings

Symbol Parameter Value Unit
VCC DC Logic Supply 0.7 7 V
VO Output Voltage internally clamped V
II Input Transient Current
(CE, SI, SCLK, RESET, SO) :
Duration Time t = 1s,
VI < 0
VI > VCC		 25 + 25 mA
mA
IOdc Continuous Output Current (for each output) Int. Limited A
Tj, Tstg Junction and Storage Temperature Range 40 150 °C
EX Max Clamping Energy (for each output)   200 mJ

L98SI Features

`EIGHT LOWRDSon DMOSOUTPUTS (0.5 AT IO = 1A@ 25°C VCC = 5V± 5%)
`8 BITSERIAL INPUT DATA (SPI)
`8 BIT SERIAL DIAGNOSTIC OUTPUT FOR OVERLOADANDOPENCIRCUITCONDITIONS
`OUTPUT SHORT CIRCUIT PROTECTION
`CHIPENABLESELECTFUNCTION(active low)
` INTERNAL 36V CLAMPING FOR EACH OUT PUT
`CASCADABLE WITH ANOTHER OCTAL DRIVER
`LOWQUIESCENTCURRENT (10mAMAX.)
`PACKAGE PowerSO20

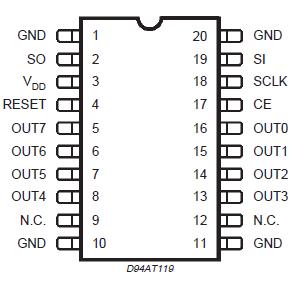

L98SI Connection Diagram
