Part Number: L9907ND



MFG: 5

Package Cooled: ST



Description: The L9907N is a monolithic integrated power comparator with full bridge output configuration, intended...


Urgent Purchase

L9907ND General Description


The L9907N is a monolithic integrated power comparator with full bridge output configuration, intended for driving DC motors in positioning systems, optimized for headlight adjustment application and respecting the automotive electronics environmental conditions.

L9907ND Maximum Ratings

Symbol Parameter Value Unit
VSDC DC Supply Voltage 26 V
VSP Supply Voltage Pulse (T 400ms) 50 V
IOUT_DC DC Output Current ±0.4 A
IOUT_P Output Current Pulsed (100ms) 0.8 A
IIN DC Input Current ±10 mA
IIN Input Current Pulse (2ms) ±40 mA
Ts Storage Shutdown Junction Temperature Range (*) 150 °C

(*) Recommended maximal Tamb 105°C

L9907ND Features

·FULL BRIDGE OUTPUT CONFIGURATION WITH LOW SATURATION VOLTAGE LESS THAN 3.2V AT OUTPUT CURRENT 0.7A
·OPERATING SUPPLY VOLTAGE RANGE 7V TO 18V. SUPPLY OVERVOLTAGEUP TO 50V
·HIGH POSITIONING PRECISION AND HIGH NOISE IMMUNITY DUE TO TRANSFER CHARACTERISTICS WITH NEUTRAL ZONE AND STOP RANGE THRESHOLD
·FAST STOP THROUGH SHORT-CIRCUITING THE MOTOR
·MOTOR STOP STATUS IN CASE OF OPEN INPUT CONDITION
·SUPPLY OVERVOLTAGE PROTECTION FUNCTION FOR Vs MORE THAN 18V, UP TO 50V
·INPUT PROTECTION AGAINST TRANSIENTS ON THE BATTERY LINE AND THE REVERSE BATTERY CONDITION
·THERMAL OVERLOAD PROTECTION
·ESD PROTECTED ACCORDING TO MIL883C

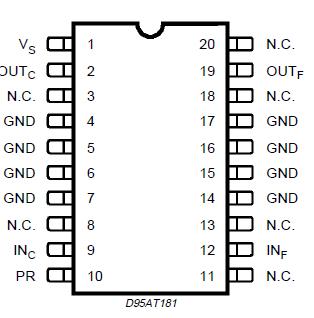

L9907ND Connection Diagram

L9907ND Connection Diagram

L9907ND datasheet
