Part Number: LA6324NM
D/C: 2001
Description: The LA6324 consists of four independent, high-performance, internally phase compensated operational am...
- Table of contents:
LA6324NM
-
Suppliers
DataSheet
General Description
LA6324NM General Description
The LA6324 consists of four independent, high-performance, internally phase compensated operational amplifiers that are designed to operate from a single power supply over a wide range of voltages. These four operational amplifiers are packaged in a single package. As in case of conventional general-purpose operational amplifiers, operation from dual power supplies is also possible and the power dissipation is low. It can be applied to various uses in commercial and industrial equipment including all types of transducer amplifiers and DC amplifiers.
LA6324NM Maximum Ratings
| Parameter |
Symbol |
Conditions | Ratings |
Unit |
| Maximum supply voltage |
VCC/VEE |
32 |
V | |
| Differential input voltage |
VID |
32 |
V | |
| Common-mode input voltage |
VIN |
0.3 to +32 |
V | |
| Allowable power dissipation |
Pd max |
LA6324N | 720 |
mW |
| LA6324NM | 330 |
mW | ||
| Operating temperature |
Topr |
30 to +85 | ||
| Storage temperature |
Tstg |
55 to +125 |
LA6324NM Features
`No phase compensation required
`Wide operating voltage range: 3.0 V to 30.0 V (single supply) ±1.5 V to ±15.0 V (dual supplies)
`Highly resistant to dielectric breakdown
` Input voltage range includes the neighborhood of GND level and output voltage range VOUT is from 0 to VCC − 1.5 V.
`Small current dissipation: ICC = 0.6 mA typ/VCC = +5 V, RL =
`Wide operating voltage range: 3.0 V to 30.0 V (single supply) ±1.5 V to ±15.0 V (dual supplies)
`Highly resistant to dielectric breakdown
` Input voltage range includes the neighborhood of GND level and output voltage range VOUT is from 0 to VCC − 1.5 V.
`Small current dissipation: ICC = 0.6 mA typ/VCC = +5 V, RL =

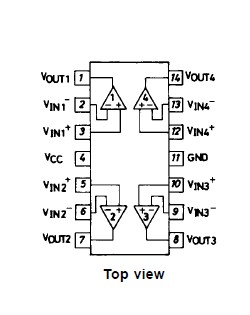

LA6324NM Connection Diagram
LA6324NM
PDF/DataSheet Download
- Datasheet: LA6324NM
- File Size: 116675 KB
- Manufacturer: SANYO [Sanyo Semicon Device]
- Click here to Download
