LA75676V-S

Features:

[VIF]
• VIF amplifier
• PLL detector
• RF AGC• EQ amplifier
• AFT
• IF AGC
• Buzz canceller
[SIF]
• Limiter amplifier
• PLL FM detector

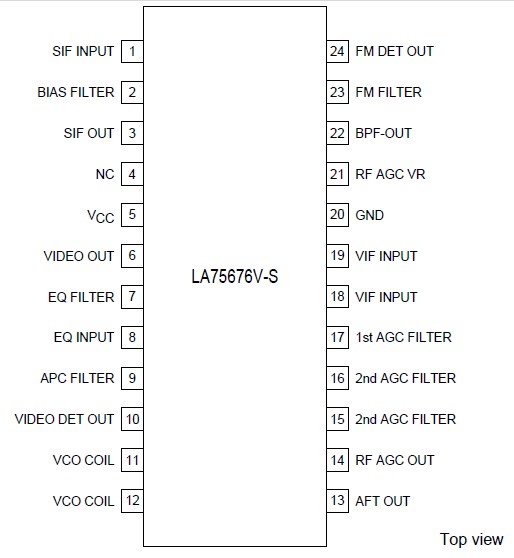

Pinout




Specifications

Parameter	Symbol	Conditions	Ratings	Unit
Maximum supply voltage	VCC max		6	V
Circuit voltage	V13, V17		VCC	V
Circuit current	I6		3	mA
	I10		10	mA
	I14		2	mA
Allowable power dissipation	Pd max	Ta70,*: Mounted on a PCB.	400	mW
Operating temperature	Topr		20 to +70
Storage temperature	Tstg		55 to +150

Description

The LA75676V-S is an NTSC intercarrier VIF/SIF IC that adopts a semi-adjustment-free structure. In particular, LA75676V-S uses VCO adjustment to make AFT adjustment unnecessary and thus simplifies the overall adjustment process. A PLL-based technique is adopted for FM detection. The 5 V supply voltage provides compatibility with other multimedia systems. In addition it achieves high audio quality by incorporating a built-in buzz canceller that suppresses Nyquist buzz.
