Part Number: LA7567NM









Description: The LA7567N and LA7567NM are PAL/NTSC multiformat audio VIF/SIF IF ICs that adopt a semiadjustment- fr...


Urgent Purchase

LA7567NM General Description


The LA7567N and LA7567NM are PAL/NTSC multiformat audio VIF/SIF IF ICs that adopt a semiadjustment- free system. The VIF block adopts a technique that makes AFT adjustment unnecessary by adjusting the VCO, thus simplifying the adjustment steps in the manufacturing process. PLL detection is adopted in the FM detector to support multi-format audio detection. A built-in SIF converter is included to simplify multi-format system designs. A 5-V power-supply voltage is used to match that used in most multimedia systems. In addition, these ICs also include a buzz canceller to suppress Nyquist buzz and provide high audio quality.

LA7567NM Maximum Ratings

Parameter Symbol Conditions Ratings Unit
Maximum supply voltage VCC max   6 V
Circuit voltage V13, V17   VCC V
Circuit current I6   3 mA
I10   10 mA
I24   2 mA
Allowable power dissipation Pd max TA  50°C, Independent IC [LA7567NM]
*: Mounted on a printed circuit board
TA 70°C, Independent IC [LA7567N]		 420 mW
720 mW
500 mW
Operating temperature Topr   20 to +70 °C
Storage temperature Tstg   55 to +150 °C

LA7567NM Features

• Both AFT and SIF inductors built in, thus making adjustment of external inductance unnecessary.
• A PAL/NTSC multi-format audio system can be constructed easily.
• Built-in buzz canceller for excellent audio performance.
• VCC = 5 V, low power dissipation (250 mW)

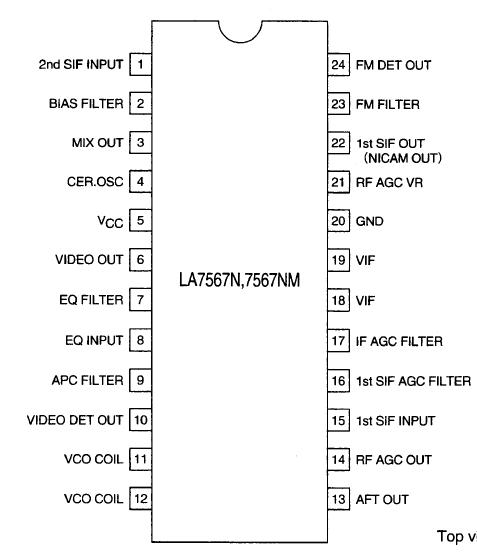

LA7567NM Connection Diagram

LA7567NM Connection Diagram

LA7567NM datasheet

LA7567NM
PDF/DataSheet Download
