Part Number: LA75691
MFG: SANYO
D/C: DIP
Description: The LA75691 is a PAL/NTSC multichannel audio VIF/SIF signal-processing IC that makes the minimum numbe...
- Table of contents:
LA75691
-
Suppliers
DataSheet
General Description
LA75691 General Description
The LA75691 is a PAL/NTSC multichannel audio VIF/SIF signal-processing IC that makes the minimum number of adjustments possible. The system is designed so that VCO adjustment makes AFT adjustment unnecessary, thus simplifying the adjustment steps in endproduct manufacturing. PLL detection is adopted in the FM detector, allowing the LA75691 to support multichannel detection for the audio signal. In addition, it also incorporates a buzz canceller that suppresses Nyquist buzz for improved audio quality.
LA75691 Maximum Ratings
| Parameter | Symbol | Conditions | Ratings | Unit |
| Maximum supply voltage | VCC max | 13.2 | V | |
| Circuit voltage | V13, V17 | VCC | V | |
| Circuit current | I6 | -3 | mA | |
| I10 | -10 | mA | ||
| I24 | -2 | mA | ||
| Allowable power dissipation | Pd max | Ta 68°C | 720 | mW |
| Operating temperature | Topr | 20 to +70 | °C | |
| Storage temperature | Tstg | 55 to +150 | °C |
LA75691 Features
• Excellent buzz and buzz/beating characteristics provided by a PLL detection technique that includes a buzz canceller.
• The second IF AGC filter is built in.
• No coils are used in the AFT and SIF circuits, making them adjustment free.
• The second IF AGC filter is built in.
• No coils are used in the AFT and SIF circuits, making them adjustment free.

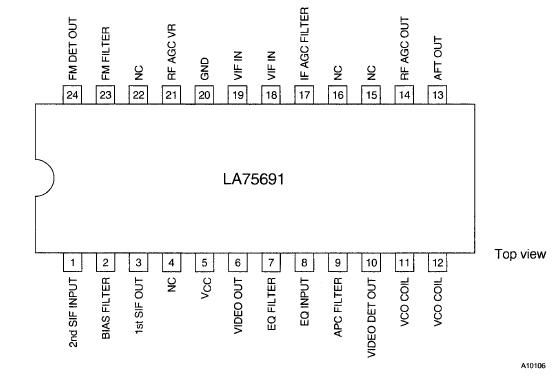

LA75691 Connection Diagram
LA75691
PDF/DataSheet Download
- Datasheet: LA75691
- File Size: 274402 KB
- Manufacturer: SANYO [Sanyo Semicon Device]
- Click here to Download
