LA9520V

Features: [Input Block]• I/V conversion featuring excellent wideband characteristics• Preamplifier ALC with wide ALC operating range[Audio Block]• Audio demodulator: Built-in 4.3 and 4.8 MHz demodulation circuits.• Muting function: Mutes the output stage when there is no in...

product image

LA9520V Picture
See larger image
SeekIC No. : 004390847 Detail

LA9520V: Features: [Input Block]• I/V conversion featuring excellent wideband characteristics• Preamplifier ALC with wide ALC operating range[Audio Block]• Audio demodulator: Built-in 4.3 a...

LA9520V Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LA9520V
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

[Input Block]
• I/V conversion featuring excellent wideband characteristics
• Preamplifier ALC with wide ALC operating range
[Audio Block]
• Audio demodulator: Built-in 4.3 and 4.8 MHz demodulation circuits.
• Muting function: Mutes the output stage when there is no input signal. The muting function operating level can be adjusted from an input pin.
• Output amplifiers: The right and left levels can be adjusted by applying voltages to input pins. Electronic volume control support.
[Video Block]
• Video demodulator
• Video amplifier: Supports 75 drive. Adjustable output level: supports an electronic volume control.
• Muting function: Mutes the output stage when there is no input signal. The muting function operating level can be adjusted from an input pin.
• Filter: Removes unneeded high-frequency components.


Pinout

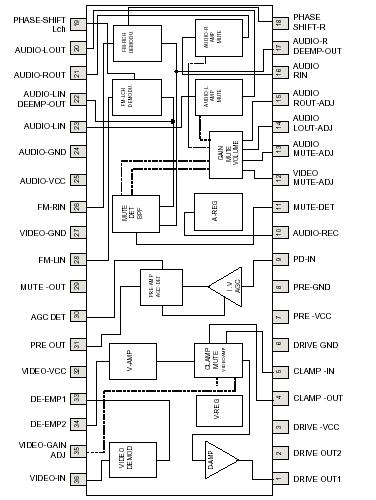

Connection Diagram


Specifications

Parameter Symbol Conditions Ratings Unit
Maximum supply voltage VCC max   6.5 V
Allowable power dissipation Pd max   550 mW
Operating temperature Topr   20 to +70 °C
Storage temperature Tstg   40 to +150 °C



Description

The LA9520V is a receiver IC developed for free-space infrared transmission of stereo audio and video signals. It integrates all the required functions for reception, including I/V conversion for the received signal, a preamplifier, ALC, audio signal demodulation, and video signal demodulation functions, on a single chip. An AV coupler system can be implemented easily using this IC and a transmitter IC (such as the LA9511W or LA9512W).
