Part Number: LAA126



MFG: CLARE

Package Cooled: 8 Pin DIP



Description: LAA126 is a 250V, 170mA, 15Ω 2-Form-A relay. It features improved on-resistance with enhanced peak load current h...


Urgent Purchase

LAA126 General Description


LAA126 is a 250V, 170mA, 15Ω 2-Form-A relay. It features improved on-resistance with enhanced peak load current handling capability.

LAA126 Maximum Ratings

Parameter Min Typ Max Units
Input Power Dissipation - - 1501 mW
Input Control Current
Peak (10ms)		 -
-		 -
-		 50
1		 mA
A
Reverse Input Voltage - - 5 V
Total Power Dissipation - - 8002 mW
Isolation Voltage
Input to Output		 3750 - - VRMS
Operational Temperature -40 - +85 °C
Storage Temperature -40 - +125 °C
Soldering Temperature
DIP Package
Flatpack/Surface Mount Pkg
(10 Seconds Max.)		 -
-		 -
-		 +260
+220		 °C
°C
1 Derate Linearly 1.33 mw/°C
2 Derate Linearly 6.67 mw/°C

LAA126 Features

• Small 8 Pin DIP Package
• Low Drive Power Requirements (TTL/CMOS Compatible)
• No Moving Parts
• High Reliability
• Arc-Free With No Snubbing Circuits
• 3750VRMS Input/Output Isolation
• FCC Compatible
• VDE Compatible
• No EMI/RFI Generation
• Machine Insertable, Wave Solderable
• Surface Mount and Tape & Reel Versions Available

LAA126 Typical Application

• Telecommunications
• Telecom Switching
• Tip/Ring Circuits
• Modem Switching (Laptop, Notebook, Pocket Size)
• Hookswitch
• Dial Pulsing
• Ground Start
• Ringer Injection
• Instrumentation
• Multiplexers
• Data Acquisition
• Electronic Switching
• I/O Subsystems
• Meters (Watt-Hour, Water, Gas)
• Medical Equipment-Patient/Equipment Isolation
• Security
• Aerospace
• Industrial Controls

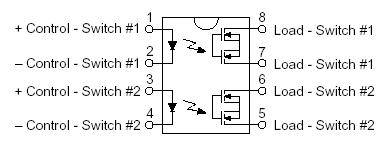

LAA126 Connection Diagram

LAA126 Connection Diagram

LAA126 datasheet

LAA126
