Part Number: LB11817
Description: The LB11817 is a spindle motor driver for use in slimshaped FDDs that use 5 V power supply.
- Table of contents:
LB11817
-
Suppliers
DataSheet
General Description
LB11817 General Description
The LB11817 is a spindle motor driver for use in slimshaped FDDs that use 5 V power supply.
LB11817 Maximum Ratings
| Parameter | Symbol | Conditions | Ratings | Unit |
| Maximum supply voltage | VCCmax | 7.0 | V | |
| Maximum output current | IO max1 | t0.5 s | 1.5 | A |
| Maximum steady-state output current | IO max2 | 1.0 | A | |
| Allowable power dissipation 1 | Pdmax1 | Independent IC | 0.6 | W |
| Operating temperature | Topr | 20 to +80 | °C | |
| Storage temperature | Tstg | 40 to +150 | °C |
LB11817 Features
• Three-phase full-wave linear drive
• Low saturation voltage
• Built-in digital speed control
• Start/stop circuit (active low)
• Speed switching
• Current limiter
• Index processing circuit
• The index timing can be adjustment with a variable resistor.
• Thermal protection circuit
• Low saturation voltage
• Built-in digital speed control
• Start/stop circuit (active low)
• Speed switching
• Current limiter
• Index processing circuit
• The index timing can be adjustment with a variable resistor.
• Thermal protection circuit

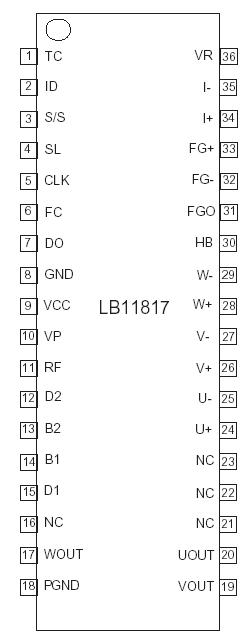

LB11817 Connection Diagram
LB11817
