Purchase LB11923V, In-stock LB11923V From SeekIC.
MFG:SANYO D/C:06=
Part Number: LB11923V
MFG: SANYO
D/C: 06=
Description: The LB11923V is a pre-driver IC designed for variablespeed control of 3-phase brushless motors. It can...
- Table of contents:
LB11923V
-
Suppliers
DataSheet
General Description
LB11923V General Description
The LB11923V is a pre-driver IC designed for variablespeed control of 3-phase brushless motors. It can be used to implement a motor drive circuit with the desired output capacity (voltage, current) by using discrete transistors for the output stage. It implements direct PWM drive for minimal power loss. Since the LB11923V includes a builtin VCO circuit, applications can control the motor speed arbitrarily by varying the external clock frequency.
LB11923V Maximum Ratings
|
Parameter |
Symbol |
Conditions |
Ratings |
Unit |
| Maximum supply voltage |
VCC max |
8 |
V | |
| Maximum input current |
IREG max |
VREG pin |
2 |
mA |
| Output current |
IO max |
UH, VH, WH, UL, VL, and WL outputs |
30 |
mA |
| Allowable power dissipation 1 |
Pd max1 |
Independent IC |
0.62 |
W |
| Allowable power dissipation 2 |
Pd max2 |
When mounted on the specified PCB (114.3× 76.1 ×1.6 mm glass epoxy PCB) |
1.79 |
W |
| Operating temperature |
Topr |
-20to+80 |
°C | |
| Storage temperature |
Tstg |
-55to150 |
°C |
LB11923V Features
• Direct PWM drive output
• Speed discriminator + PLL speed control circuit
• Speed lock detection output
• Built-in crystal oscillator circuit
• Forward/reverse switching circuit
• Braking circuit (short braking)
• Full complement of on-chip protection circuits,including lock protection, current limiter, and thermal shutdown protection circuits.

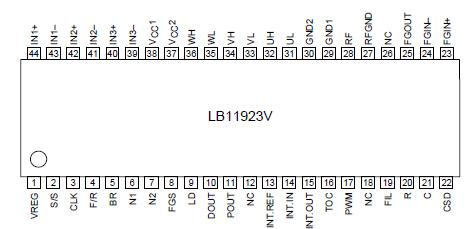

LB11923V Connection Diagram
LB11923V
