Product Details

Description

Features:

• Three-phase full-wave linear drive (with external PNP transistor)
• Low saturation voltage
• Built-in digital speed control
• Start/stop circuit (Low active)
• Switchable rotation speed
• Current limiter circuit
• Built-in index processing circuit
• Index timing adjustable by VR
• AGC circuit
• Thermal protection circuit

Pinout

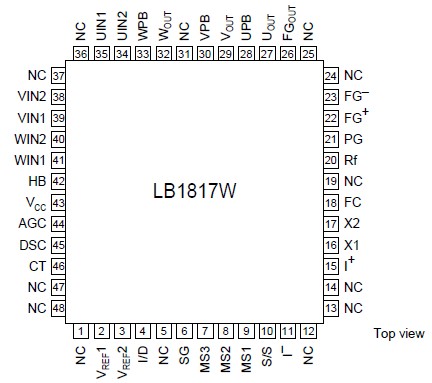

Connection Diagram

Specifications

Parameter	Symbol	Conditions	Ratings	Unit
Maximum supply voltage	V_CC max		7.5	V
Maximum output current	I_CCmax1	t 0.5s	1.5	A
Maximum constant output current	I_Omax2		1.0	A
Allowable power dissipation	Pd max1	IC only	0.45	W
Operating temperature	Topr		20 to +80	°C
Storage temperature	Tstg		40 to +150	°C

Description

The LB1817W is a spindle motor driver for low-profile floppy disk drives.
