LB1823
-
Suppliers
DataSheet
General Description
LB1823 Maximum Ratings
| Parameter | P Symbol | Conditions | Ratings | Unit |
| Maximum supply voltage | VCC max | 9 | V | |
| Maximum input current | IREG | VREG pin | 10 | mA |
| Output current | IO | UL, VL and WL outputs | 30 | mA |
| Allowable power dissipation | Pd max | 1 | W | |
| Operating temperature | Topr | 20 to +80 | °C | |
| Storage temperature | Tstg | 55 to +150 | °C |
LB1823 Features
• Direct PWM drive output
• Crystal oscillator circuit
• Speed discriminator plus PLL speed control system
• Lock detector output
• Forward/reverse switching circuit
• Braking circuit (short braking technique)
• Start/stop switching circuit
• Over current limiter circuit (OCL)
• Thermal shutdown circuit (TSD)
• Built-in FG amplifier, integrating amplifier
• Shunt regulator output (7.0 V)
• Crystal oscillator circuit
• Speed discriminator plus PLL speed control system
• Lock detector output
• Forward/reverse switching circuit
• Braking circuit (short braking technique)
• Start/stop switching circuit
• Over current limiter circuit (OCL)
• Thermal shutdown circuit (TSD)
• Built-in FG amplifier, integrating amplifier
• Shunt regulator output (7.0 V)

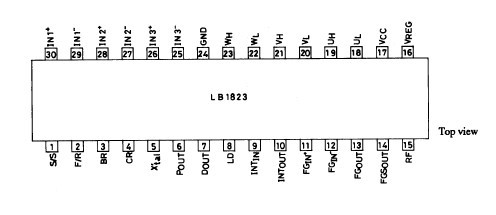

LB1823 Connection Diagram
