Product Details

Description



Features:

• Support for 5V/12V dual power supply voltage
• Built-in regenerative circuit allows use of reverseconnection protection diode
• Built-in Hall amplifier with hysteresis (supports core without auxiliary electrode)
• Built-in lockup protection and automatic recovery circuits
• Latch-type lockup detection output (RD) is Low during rotation and High during stop
• Hall bias pin and start/stop pin allow reduced current drain in standby mode
• Built-in thermal protection circuit

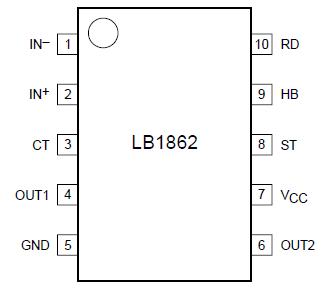

Pinout






Specifications

Parameter
Symbol
Ratings
Unit
Maximum supply voltage
VCC max
17
V
Maximum output current
VOUT max
17
V
Maximum output withstand voltage
IOUT max
0.8
A
RD maximum output withstand voltage
VR max
17
V
RD maximum output current
IR max
5
mA
HB maximum output current
IB max
10
mA
ST maximum input voltage
VST max
15
V
Allowable power dissipation
Pd max
1.0
W
Operating temperature
Topr
-30to+85
°C
Storage temperature
Tstg
-55to+150
°C





Description

Single-phase full-wave drive LB1862 design and a compact package make this IC optimal for small fans (especially CPU cooling fans). Low switching noise and effective motor drive are further advantages.
