Product Details

Description

Features:

• Brushless sensorless motor drive (3-phase half-wave drive)
• Forward/reverse drive possible
• Built-in speed control function (voltage servo)
• Built-in reference voltage (0.9V)
• Soft switching

Pinout

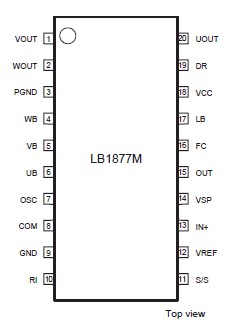

Connection Diagram

Specifications

Parameter	Symbol	Conditions	Ratings	Unit
Maximum supply voltage	V_CC max		6.0	V
Output current	I_O	UL, VL and WL outputs	0.5	mA
Allowable power dissipation	P_d max		0.5	W
Operating temperature	T_opr		10 to +80	°C
Storage temperature	T_stg		40 to +150	°C
