Product Details

Description

Features:

• Three-phase sensorless motor driver
• Built-in speed control
• Built-in reference voltage and forward/reverse switching pin
• Soft switching
• Built-in short brake drive pin

Pinout

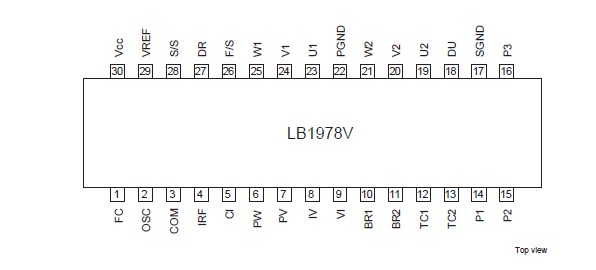

Connection Diagram

Specifications

Parameter	Symbol	Ratings Unit	Ratings	Unit
Maximum supply voltage	V_ccmax		2.0	V
Output transistor withstand voltage	V_sus		4	V
Maximum output current	I_o max		0.6	A
Allowable power dissipation	P_dmax	T_j = 125°C	0.4	W
Operating temperature	T_opr		0 to 60	°C
Storage temperature	T_stg		40 to +125	°C
