Product Details

Description

Pinout

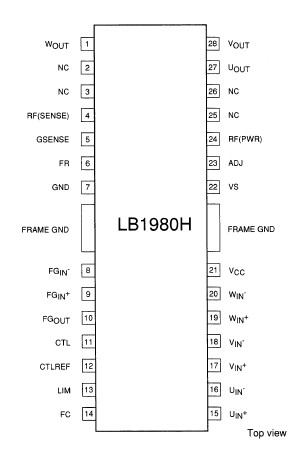

Connection Diagram

Specifications

Parameter	Symbol	Conditions	Ratings	Unit
Maximum supply voltage	V_CC max		7	V
Maximum supply voltage	V_smax		24	V
Maximum output current	I_O max		1.3	A
Allowable power dissipation	Pd max	Mounted on a 71.6* 114.3* 1.6 mm glass Epoxy printed circuit board	1.81	W
Allowable power dissipation	Pd max	Independent device	0.77	W
Operating temperature	Topr		20 to + 75	°C
Storage temperature	Tstg		55 to + 150	°C

Absolute maximum ratings
Vm min [V]	5
Vm max [V]	22
IO max [A]	1.3

Description

The LB1980H is a 3-phase brushless motor driver that is particularly appropriate for VCR capstan motor drivers.
