Purchase LB1987M, In-stock LB1987M From SeekIC.
- Table of contents:
LB1987M
-
Suppliers
DataSheet
General Description
LB1987M Maximum Ratings
| Parameter | Symbol | Ratings Unit | Ratings | Unit |
| Maximum supply voltage | Vcc max | 2.0 | V | |
| Output transistor withstand voltage | Vsus | 4 | V | |
| Maximum output current | Io max | 0.6 | A | |
| Allowable power dissipation | Pd max | Tj = 125°C | 0.4 | W |
| Operating temperature | Topr | 0 to 60 | °C | |
| Storage temperature | Tstg | 40 to +125 | °C |
LB1987M Features
• Three-phase full-wave current-linear drive
• Torque ripple correction circuit (fixed correction ratio)
• Current limiter circuit with control characteristics gain switching
• Oversaturation prevention circuits for both the upper and lower sides of the output stage (No external capacitors are required.)
• FG amplifier
• Thermal shutdown circuit
• Torque ripple correction circuit (fixed correction ratio)
• Current limiter circuit with control characteristics gain switching
• Oversaturation prevention circuits for both the upper and lower sides of the output stage (No external capacitors are required.)
• FG amplifier
• Thermal shutdown circuit

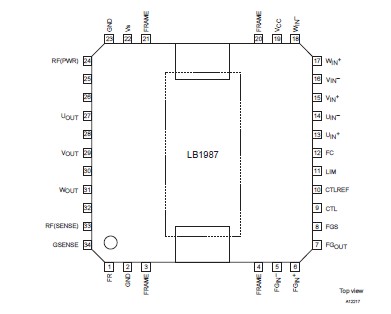

LB1987M Connection Diagram
LB1987M
PDF/DataSheet Download
- Datasheet: LB1987M
- File Size: 152164 KB
- Manufacturer: SANYO [Sanyo Semicon Device]
- Click here to Download
