Purchase LB1989, In-stock LB1989 From SeekIC.

MFG:SANYO  D/C:01+

LB1989 Product Image

LB1 Series Datasheet download

Five Points

Part Number: LB1989



MFG: SANYO



D/C: 01+



Urgent Purchase

LB1989 Maximum Ratings

Parameter
Symbol
Conditions
Ratings
Unit
Maximum supply voltage
VCCmax
14.5
V
Maximum output voltage
VOmax
14.5
V
Maximum input voltage
VI1max
0.3 to VCC1 + 0.3
V
Maximum cylinder current
IOmax
1.0
W
Allowable power dissipation
Pdmax
Independent IC
0.6
A
Operating temperature
Topr
20 to +75
°C
Storage temperature
Tstg
55 to +150
°C

LB1989 Features

• Soft switching drive
• No Hall sensors required.
• No FG sensors required.
• Built-in PG amplifier
• Thermal shutdown circuit
• Current limiter circuit

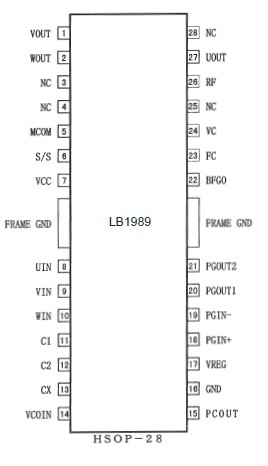

LB1989 Connection Diagram

LB1989 Connection Diagram

LB1989 datasheet

LB1989
PDF/DataSheet Download
