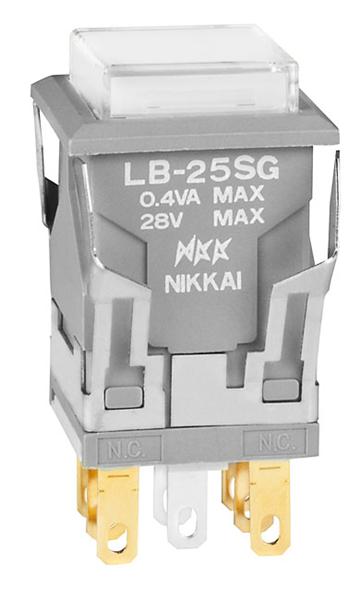

See larger image

SeekIC No. : 002621457 Detail

LB25SGG01-5F24-JB: Pushbutton Switches DPDT ON-(ON) SQ 24V GRN LED CLR/WHT CAP

LB25SGG01-5F24-JB Data Sheet

US $ 15.57~17.03 / Piece | Get Latest Price

Part Number:: LB25SGG01-5F24-JB
Mfg:: NKK Switches
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~50
50~100

Unit Price
$17.03
$16.49
$16.3
$15.57

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

LB2518T100K evaluate
US $.06 - .07 / Piece

Common Mode Inductors (Chokes) INDCTR STD WND 1007 10uH 10%
LB2518T100M evaluate
US $.07 - .23 / Piece

Common Mode Inductors (Chokes) INDCTR STD WND 1007 10uH 20%
LB2518T101K evaluate
US $.06 - .07 / Piece

Common Mode Inductors (Chokes) INDCTR STD WND 1007 100uH 10%

Product Details

Quick Details

Contact Form :	DPDT	Switch Function :	ON - (ON)
Voltage Rating AC :	28 V	Voltage Rating DC :	28 V
Power Rating :	0.4 Volt-Amp	Mounting Style :	Snap In
Illumination :	Illuminated	Illumination Color :	Green
Termination Style :	Solder Lug	Contact Plating :	Gold
Actuator :	Square	Flammability Rating :	UL 94 V-0

Description

Current Rating :
IP Rating :
Cap Color :
Packaging :
Voltage Rating DC : 28 V
Flammability Rating : UL 94 V-0
Power Rating : 0.4 Volt-Amp
Contact Plating : Gold
Termination Style : Solder Lug
Switch Function : ON - (ON)
Contact Form : DPDT
Mounting Style : Snap In
Illumination : Illuminated
Illumination Color : Green
Actuator : Square
Voltage Rating AC : 28 V

Parameters:

Technical/Catalog Information	LB25SGG01-5F24-JB
Vendor	NKK Switches of America Inc
Category	Switches
Actuator Type	Square Button
Circuit	DPDT
Contact Rating @ Voltage	0.4VA @ 28VAC/DC
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	24 VDC
Mounting Type	Panel Mount, Snap-In
Switch Function	On-Mom
Termination Style	Solder, Quick Connect - .110" (2.8mm)
Type	Illuminated
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	LB25SGG01 5F24 JB LB25SGG015F24JB
