LBA126
-
Suppliers
DataSheet
General Description
LBA126 General Description
LBA126 is 250V, 170mA, 15Ω independent 1-Form-A and 1-Form-B relays. It features lower on-resistance with enhanced peak load current handling capabilities.
LBA126 Maximum Ratings
| Parameter | Min | Typ | Max | Units |
| Input Power Dissipation | - | - | 1501 | mW |
| Input Control Current Peak (10ms) |
- - |
- - |
50 1 |
mA A |
| Reverse Input Voltage | - | - | 5 | V |
| Total Power Dissipation | - | - | 8002 | mW |
| Isolation Voltage Input to Output |
3750 | - | - | VRMS |
| Operational Temperature | -40 | - | +85 | °C |
| Storage Temperature | -40 | - | +125 | °C |
| Soldering Temperature DIP Package Flatpack/Surface Mount Package (10 Seconds Max.) |
- - |
- - |
+260 +220 |
°C °C |
1 Derate Linearly 1.33 mw/°C
2 Derate Linearly 6.67 mw/°C
LBA126 Features
• Small 8 Pin DIP Package
• Low Drive Power Requirements (TTL/CMOS Compatible)
• No Moving Parts
• High Reliability
• Arc-Free With No Snubbing Circuits
• 3750VRMS Input/Output Isolation
• FCC Compatible
• VDE Compatible
• No EMI/RFI Generation
• Machine Insertable, Wave Solderable
• Surface Mount and Tape & Reel Versions Available
• Low Drive Power Requirements (TTL/CMOS Compatible)
• No Moving Parts
• High Reliability
• Arc-Free With No Snubbing Circuits
• 3750VRMS Input/Output Isolation
• FCC Compatible
• VDE Compatible
• No EMI/RFI Generation
• Machine Insertable, Wave Solderable
• Surface Mount and Tape & Reel Versions Available
LBA126 Typical Application
• Telecommunications
• Telecom Switching
• Tip/Ring Circuits
• Modem Switching (Laptop, Notebook, Pocket Size)
• Hookswitch
• Dial Pulsing
• Ground Start
• Ringer Injection
• Instrumentation
• Multiplexers
• Data Acquisition
• Electronic Switching
• I/O Subsystems
• Meters (Watt-Hour, Water, Gas)
• Medical Equipment-Patient/Equipment Isolation
• Security
• Aerospace
• Industrial Controls
• Telecom Switching
• Tip/Ring Circuits
• Modem Switching (Laptop, Notebook, Pocket Size)
• Hookswitch
• Dial Pulsing
• Ground Start
• Ringer Injection
• Instrumentation
• Multiplexers
• Data Acquisition
• Electronic Switching
• I/O Subsystems
• Meters (Watt-Hour, Water, Gas)
• Medical Equipment-Patient/Equipment Isolation
• Security
• Aerospace
• Industrial Controls

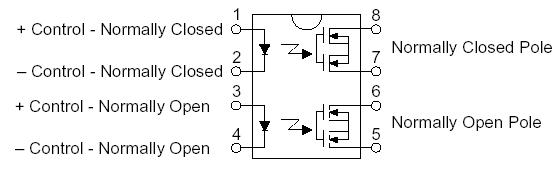

LBA126 Connection Diagram
LBA126
PDF/DataSheet Download
- Datasheet: LBA126
- File Size: 129024 KB
- Manufacturer: CLARE [Clare, Inc.]
- Click here to Download
