Product Details

Description



Features:

• Supply voltage range: 2.7 to 3.6 V
• Access time: 100 ns (maximum)
• Standby current: 0.8 A (Ta 60°C)
                              4.0 A (Ta 70°C)
• Operating temperature: 10 to +70°C
• Data retention voltage: 2.0 to 3.6 V
• All I/O levels: CMOS compatible (0.8 VCC, 0.2 VCC)
• Input/output shared function pins, 3-state output pins
• No clock required (fully static circuits)
• Package
28-pin SOP (450 mil) plastic package:
LC35W256EM-10W
28-pin TSOP (8* 13.4 mm) plastic package:
LC35W256ET-10W

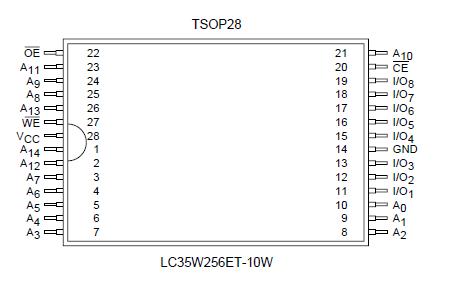

Pinout

  Connection Diagram


Specifications

Parameter
Symbol
Conditions
Ratings
Unit
Maximum supply voltage
VCC max
4.6
V
Input pin voltage
VIN
0.3* to VCC + 0.3
V
I/O pin voltage
VI/O
-0.3 to VCC + 0.3
V
Operating temperature
Topr
10 to +70
°C
Storage temperature
Tstg
-55 to +125
°C
Note: * The minimum value is 2.0 V for pulse widths under 30 ns.


Description

The LC35W256EM-10W and LC35W256ET-10W are asynchronous silicon-gate CMOS SRAMs with a 32768- word by 8-bit structure. These are full-CMOS devices with 6 transistors per memory cell, and feature ultralowvoltage operation, a low operating current drain, and an ultralow standby current. Control inputs include OE for fast memory access and CE for power saving and device selection. This makes these devices optimal for systems that require low power or battery backup, and makes memory expansion easy. The ultralow standby current allows these devices to be used with capacitor backup as well.
