Part Number: LC4120NV
Description: The LC4120NV is an LCD power supply switching IC that provides 3 input channels and 6 output channels....
- Table of contents:
LC4120NV
-
Suppliers
DataSheet
General Description
LC4120NV General Description
The LC4120NV is an LCD power supply switching IC that provides 3 input channels and 6 output channels. It is fabricated in an 80-V high-voltage CMOS process and features low power dissipation, high speed, and a low output impedance. This IC is optimal for switching the row driver LCD drive voltage in a wide range of LCD products.
LC4120NV Maximum Ratings
| Parameter | Symbol | Conditions | Ratings |
Unit |
| Maximum supply voltage | VDD max | VDD | 0.3 to +7.0 |
V |
| VHA, BVLA, B | VHA, B/VLA, B | 0.3 to +85 |
V | |
| VHA/VHB | VHA/VHB | 0.3 to +45.0 |
V | |
| VLA/VLB | VLA/VLB | 40.0 to +0.3 |
V | |
| Input voltage | VIN | S1 to S3 | 0.3 to VDD +0.3 |
V |
| Operating temperature | Topr | 20 to +75 |
°C | |
| Storage temperature | Tstg | 40 to +125 |
°C |
LC4120NV Features
• 3 input channels/6 output channels
• Logic voltage: 2.7 to 5.5 V
• Output voltage: 80 V (maximum)
• Output impedance: 110½ (maximum) (When VHA VLA = 60 V)
• Output delay time: 0.5 s (maximum)
• Operating temperature: 20 to 75°C
• Package: 20-pin SSOP
• Logic voltage: 2.7 to 5.5 V
• Output voltage: 80 V (maximum)
• Output impedance: 110½ (maximum) (When VHA VLA = 60 V)
• Output delay time: 0.5 s (maximum)
• Operating temperature: 20 to 75°C
• Package: 20-pin SSOP

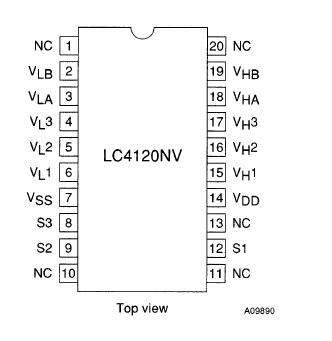

LC4120NV Connection Diagram
LC4120NV
