Part Number: LC573904
Description: The LC573904 is a CMOS 4-bit microcontroller that operates on low voltage and very low power consumpti...
- Table of contents:
LC573904
-
Suppliers
DataSheet
General Description
LC573904 General Description
The LC573904 is a CMOS 4-bit microcontroller that operates on low voltage and very low power consumption. It also contains 4K-byte ROM, 128 × 4 bits RAM, LCD drivers and melody function.
LC573904 Maximum Ratings
| Parameter |
Symbol |
Pin & Conditions |
Ratings |
Unit |
| Supply voltage |
VDD1 |
-0.3 to +4.0 |
V | |
|
VDD2 |
-0.3 to +4.0 |
|||
| Input voltage |
VIN |
S1-S4, M1, M2, TEST, OSCIN, RES |
-0.3 to VDD1+0.3 |
|
| Output voltage |
VOUT1 |
CUP2, OSCOUT, OUT |
-0.3 to VDD1+0.3 |
|
|
VOUT2 |
SEG1-SEG25, COM1-COM4, CUP1 |
-0.3 to VDD2+0.3 |
||
| Peak output current (at each pins) |
IOUT1 |
ALM |
4 |
mA |
|
IOUT2 |
LIGHT |
1 |
||
|
IOUT3 |
Output except ALM and LIGHT |
500 |
A | |
| Total output current |
IALL |
Total output pins. |
10 |
mA |
| Maximum power dissipation |
Pdmax |
QFP64 |
430 |
mW |
| Operating temperature range |
Topr |
-30 to +70 |
°C | |
| Storage temperature range |
Tstg |
-40 to +125 |
LC573904 Features
(1) ROM :4096 * 8 bits
(2) RAM :128 * 4 bits
(3) Cycle Time
(4) Input / Output Terminals
- Input ports : 4 terminals (S-port : 4 terminals)
- Input / Output ports : 8 terminals (P0 port : 4 terminals, P1 port : 4 terminals)
[Notes] When using the P1 port for output, the "L" level hold Tr. of P1 should be OFF.
If P1 port becomes "H" level with "L" level hold Tr. on, it causes the through current from VDD to GND and increases the current consumption.
- Output ports : 2 terminals (Buzzer / melody output terminal : 1 terminal, General output port : 1 terminal)
- LCD segment output ports : 32 terminals (Possible to use output port by mask option)
- LCD common output ports : 4 terminals
(2) RAM :128 * 4 bits
(3) Cycle Time
(4) Input / Output Terminals
- Input ports : 4 terminals (S-port : 4 terminals)
- Input / Output ports : 8 terminals (P0 port : 4 terminals, P1 port : 4 terminals)
[Notes] When using the P1 port for output, the "L" level hold Tr. of P1 should be OFF.
If P1 port becomes "H" level with "L" level hold Tr. on, it causes the through current from VDD to GND and increases the current consumption.
- Output ports : 2 terminals (Buzzer / melody output terminal : 1 terminal, General output port : 1 terminal)
- LCD segment output ports : 32 terminals (Possible to use output port by mask option)
- LCD common output ports : 4 terminals

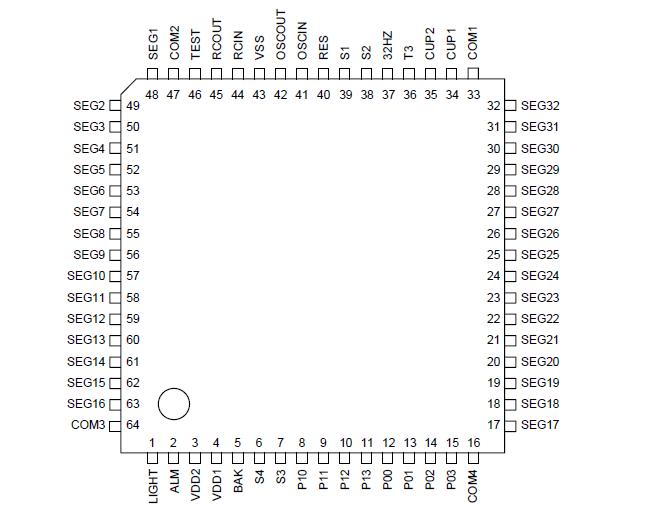

LC573904 Connection Diagram
LC573904
PDF/DataSheet Download
- Datasheet: LC573904
- File Size: 643280 KB
- Manufacturer: SANYO [Sanyo Semicon Device]
- Click here to Download
