LC72146V

Features: • High-speed programmable dividers for- 10 to 160 MHz on FMIN using pulse swallower- 0.5 to 40.0 MHz on AMIN using pulse swallower and direct division• General-purpose counters- HCTR for 0.4 to 25.0 MHz frequency measurement- LCTR for 10 to 500 kHz frequency measurement and 1...

product image

LC72146V Picture
See larger image
SeekIC No. : 004391808 Detail

LC72146V: Features: • High-speed programmable dividers for- 10 to 160 MHz on FMIN using pulse swallower- 0.5 to 40.0 MHz on AMIN using pulse swallower and direct division• General-purpose counters...

LC72146V Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LC72146V
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High-speed programmable dividers for
- 10 to 160 MHz on FMIN using pulse swallower
- 0.5 to 40.0 MHz on AMIN using pulse swallower and direct division
• General-purpose counters
- HCTR for 0.4 to 25.0 MHz frequency measurement
- LCTR for 10 to 500 kHz frequency measurement and 1.0 Hz to 20*103 kHz period measurement
• Reference frequencies: Twelve selectable reference frequencies (4.5 or 7.2 MHz crystal) 1, 3, 5, 9, 10,3.125, 6.25, 12.5, 25, 30, 50 and 100 kHz
• Phase comparator
- Insensitive band control
- Unlock detection
- Sub-charge pump for high-speed locking
- Deadlock clear circuit
• CCB input/output data interface
• Power-on reset circuit
• Built-in MOS transistor for a low-pass filter
• Inputs/outputs (using five general-purpose input/output ports)
- Maximum of seven inputs (max)
- Maximum of seven outputs (max/four n-channel open-drain and three CMOS outputs)
- Time-base output for clock (8 Hz)
• Operating ranges
- Supply voltage ..................................4.5 to 5.5 V
- Opetating temperature ......................40 to 85°C
• Package
- DIP24S, MFP24S, SSOP24

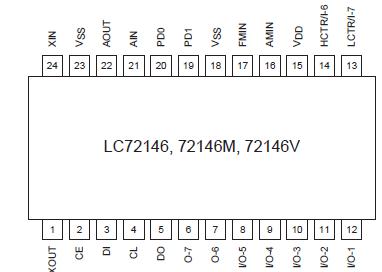

Pinout

Connection Diagram




Specifications

Parameter Symbol Conditions
Ratings
 Unit
Maximum supply voltage VDDmax VDD
0.3 to +7.0
V
Maximum input voltage VIN1 max CE, CL, DI
0.3 to +7.0
V
VIN2 max XIN, FMIN, AIN, AMIN, HCTR/I-6, LCTR/I-7, I/O-4, I/O-5
0.3 to VDD + 0.3
V
VIN3 max I/O-1 to I/O-3
0.3 to +15
V
Maximum output voltage VO1 max DO
0.3 to +7.0
V
VO2 max XOUT, I/O-4, I/O-5, O-6, PD0, PF1, AIN
0.3 to VDD + 0.3
V
VO3 max I/O-1 to I/O-3, AOUT, O-7
0.3 to +15
V
Maximum output current IO1 max I/O-4, I/O-5, O-6, O-7
0 to 3.0
mA
IO2 max DO, AOUT
0 to 6.0
mA
IO3 max I/O-1 to I/O-3
0 to 10
mA
Allowable powerdissipation Pdmax DIP24S:Ta 85°C
350
mW
MFP24S:Ta 85°C
220
mW
SSOP24:Ta 85°C
150
mW
Operating temperature Topr
40 to +85
Storage temperature Tstg
50 to +125





Description

The LC72146V is a PLL frequency synthesizer LSI circuit for electronic tuning in car stereo systems. The LC72146 supports the construction of high-performance, multifunctional electronic tuning systems for the VHF MW, and LW bands.
