LC72148V
-
Suppliers
DataSheet
General Description
LC72148V Maximum Ratings
| Parameter | Symbol | Conditions | Ratings | Unit |
| Supply voltage | VDD max | VDD | 0.3 to +7.0 | V |
| Maximum supply voltage | VIN1 max | CE, CL, DI, AIN | 0.3 to +7.0 | V |
| VIN2 max | XIN, FMIN, HCTR, I/O-4, I/O-5, ADC0, ADC1 | 0.3 to Vreg + 0.3 | ||
| VIN3 max | I/O-1 to I/O-3 | 0.3 to +15 | ||
| Maximum input voltage | VO1 max | DO | 0.3 to +7.0 | V |
| VO2max | XOUT, IFBC, I/O-4, I/O-5, PD, XBUF | 0.3 to Vreg + 0.3 | V | |
| VO3max | I/O-1 to I/O-3, AOUT | 0.3 to +15 | V | |
| Maximum output voltage | IO1 max | IFBC | 0 to 1.0 | V |
| IO2 max | I/O-4, I/O-5, XBUF | 0 to 3.0 | V | |
| IO3 max | DO | 0 to 6.0 | V | |
| IO4 max | I/O-1 to I/O-3 | 0 to 10 | V | |
| IO5 max | ||||
| Maximum output current | IO max | AOUT | 0 to 35 | mA |
| Allowable power dissipation | Pd max | 150 | mW | |
| Operating temperature | Topr | 20 to +70 | °C | |
| Storage temperature | Tstg | 40 to +125 | °C |

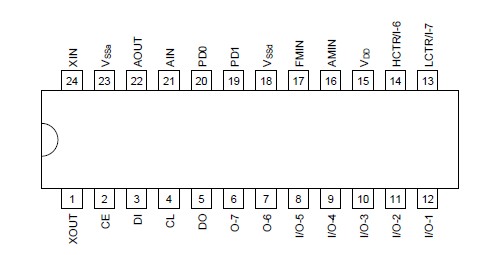

LC72148V Connection Diagram
LC72148V
PDF/DataSheet Download
- Datasheet: LC72148V
- File Size: 174443 KB
- Manufacturer: SANYO [Sanyo Semicon Device]
- Click here to Download
