General Description
LC72151V General Description
The LC72151V is a PLL frequency synthesizer for car audio systems. It can implement high-performance multifunction tuners such as RDS tuners and features a fast locking circuit.
LC72151V Maximum Ratings
|
Parameter |
Symbol |
Pin |
Ratings |
Unit |
|
Supply voltage |
VDD max |
VDD * |
0.3 to +6.5 |
V |
|
AVDD * |
0.3 to +11.0 | |||
|
Maximum input voltage |
VIN1 max |
CE, CL, DI |
0.3 to +7.0 |
V |
|
VIN2 max |
XIN, FMIN, AMIN, HCTR/I-3, LCTR/I-4, AIN2, TGI1, TGI2, TGO |
0.3 to VDD + 0.3 | ||
|
VIN3 max |
I/O-1, I/O-2 |
0.3 to +15.0 | ||
|
VIN4 max |
AIN1, AREF |
0.3 to +6.5 | ||
|
Maximum output voltage |
VO1 max |
DO |
0.3 to +7.0 |
V |
|
VO2 max |
XOUT, PDM1, PDM2, PDS, PDF, XBUF, TGI1, TGI2, TGO |
0.3 to VDD + 0.3 | ||
|
VO3 max |
I/O-1, I/O-2, O-3, AOUT2 |
0.3 to +15.0 | ||
|
VO4 max |
AOUT1 |
0.3 to +11.0 | ||
|
Maximum output current |
IO1 max |
I/O-1, I/O-2, O-3 |
0 to 10.0 |
mA |
|
IO2 max |
DO, TGI1, TGI2, TGO, AOUT1, AOUT2 |
0 to 5.0 | ||
|
IO3 max |
XBUF |
0 to 3.0 | ||
|
Allowable power dissipation |
Pd max |
(Ta 85°C) |
SSOP30 :160 |
mW |
|
Operating temperature |
Topr |
40 to +85 |
°C | |
|
Storage temperature |
Tstg |
55 to +125 |
°C |
Note: Power must be applied to AVDD before applying to VDD and AVDD must be higher than or equal to VDD. Capacitors of at least 0.1 F must be inserted between the VDD and VSS, and between the AVDD and AVSS power supply pins.

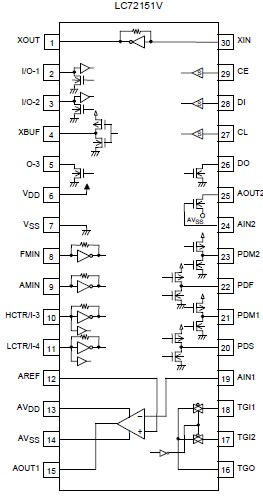

LC72151V Connection Diagram
