Purchase LC75366M, In-stock LC75366M From SeekIC.
D/C:99
Part Number: LC75366M
D/C: 99
Description: The LC75366 (DIP20) and the LC75366M (MFP20) are electronic volume controls that can be controlled by ...
- Table of contents:
LC75366M
-
Suppliers
DataSheet
General Description
LC75366M General Description
The LC75366 (DIP20) and the LC75366M (MFP20) are electronic volume controls that can be controlled by serial input data and provide volume, balance and loudness functions.
LC75366M Maximum Ratings
| Parameter | Symbol | Conditions |
Ratings |
Unit | |
| Maximum supply voltage | VDDmax | VDD |
12 |
V | |
| Maximum input voltage | VIN max1 | CL, DI, CE, S |
VSS 0.3 to VDD + 0.3 |
V | |
| VIN max2 | L10dBIN, L2dBIN, R10dBIN, R2dBIN |
VSS 0.3 to VDD + 0.3 |
V | ||
| Allowable power dissipation | Pdmax | Ta85°C |
140 |
mW | |
| Operating temperature | Topr |
40 to +85 |
|||
| Storage temperature | Tstg |
40 to +125 |
|||
LC75366M Features
• Silicon gate CMOS process for low switching noise

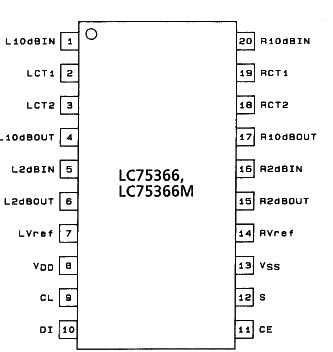

LC75366M Connection Diagram
LC75366M
PDF/DataSheet Download
- Datasheet: LC75366M
- File Size: 250648 KB
- Manufacturer: Sanyo
- Click here to Download
