Purchase LC75374E, In-stock LC75374E From SeekIC.
MFG:SANYO D/C:QFP44
Part Number: LC75374E
MFG: SANYO
D/C: QFP44
Description: The LC75374E is an electronic volume and tone control circuit that provides volume, balance, fader, ba...
- Table of contents:
LC75374E
-
Suppliers
DataSheet
General Description
LC75374E General Description
The LC75374E is an electronic volume and tone control circuit that provides volume, balance, fader, bass and treble, super bass, input switching, and input and output level controls and requires a minimal number of external components to implement these functions.
LC75374E Maximum Ratings
| Parameter | Symbol | Conditions |
Ratings |
Unit | |
| Maximum supply voltage | VDDmax | VDD |
11 |
V | |
| Maximum input voltage | VIN max | CL, DI, CE |
VSS 0.3 to VDD + 0.3 |
V | |
| Allowable powerdissipation | Pdmax | When Ta 85°C and mounted on a printed circuit board |
720 |
mW | |
| Operating temperature | Topr |
40 to +85 |
|||
| Storage temperature | Tstg |
50 to +125 |
|||
LC75374E Features
• On-chip buffer amplifiers minimizes the number of external components.
• Built-in reference voltage generator for the analog ground.
• All controls can be set using the serial data input circuit (CCB).
• Built-in reference voltage generator for the analog ground.
• All controls can be set using the serial data input circuit (CCB).

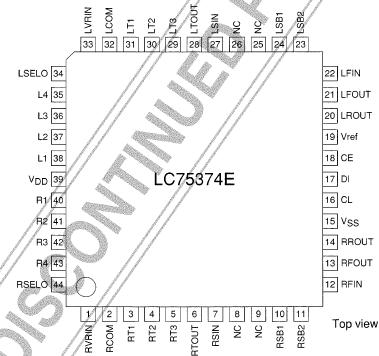

LC75374E Connection Diagram
LC75374E
