Part Number: LC75383E



MFG: SONY

Package Cooled: QFP

D/C: 0705+

Description: The LC75383E is an electronic volume control that provides volume, balance, fader, bass/treble, input ...


Urgent Purchase

LC75383E General Description


The LC75383E is an electronic volume control that provides volume, balance, fader, bass/treble, input switching and input level controls. The LC75383E supports all these functions while requiring a minimum number of external components.

LC75383E Maximum Ratings

Parameter Symbol Conditions
Ratings
 Unit
Maximum supply voltage VDDmax VDD
12
V
Maximum input voltage VIN max CL, DI, CE, LTIN, RTIN, L10dBIN, R10dBIN, L1dBIN,
R1dBIN, LFIN, RFIN, L1 to L4, R1 to R4
VSS 0.3 to
VDD + 0.3
V
Allowable powerdissipation Pdmax Ta 85°C
310
mW
Operating temperature Topr
40 to +85
Storage temperature Tstg
50 to +125

LC75383E Features

• Volume: 0 dB to 79 dB (in 1 dB steps) and ; 81 positions.
   A balance function can be implemented using the LC75383E independent left and right volume control functions.
• Fader: The rear channels or the front channels can be attenuated over 16 positions: from 0 dB to 20 dB in 2 dB steps, from 20 dB to 25 dB in one 5 dB step, from 25 dB to 45 dB in 10 dB steps, 60 dB, and for a total of 16 positions.
• Bass/treble: The LC75383E supports 21 position bass and treble controls using external capacitors.
• Input selector: The LC75383E can select one of four L/R inputs. The selected input signal can be amplified from 0 dB to +18 dB in 6 dB steps.
• Built-in operational amplifiers mean that few external components are required.
• Silicon gate process for minimal switching noise.
• All controls can be set from serial input data (CCB).

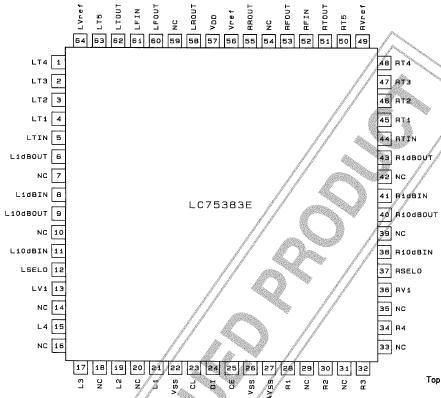

LC75383E Connection Diagram

LC75383E Connection Diagram
