Product Details

Description



Features:

• Key input function for up to 20 keys (A key scan is performed only when a key is pressed.)
• 1/3 duty - 1/2 bias and 1/3 duty - 1/3 bias drive schemes can be controlled from serial data (up to 48 segments).
• Sleep mode and all segments off functions that are controlled from serial data
• Segment output port/general-purpose output port function switching that is controlled from serial data
• Serial data I/O supports CCB format communication with the system controller.
• Direct display of display data without the use of a decoder provides high generality.
• Provision of an on-chip voltage-detection type reset circuit prevents incorrect displays.
• RC oscillator circuit


Pinout

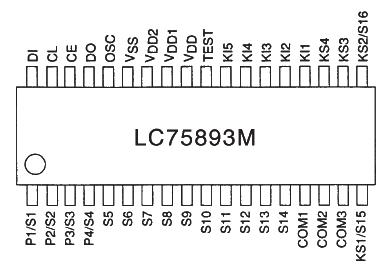

Connection Diagram


Specifications

Parameter Symbol Conditions
Ratings
 Unit
Maximum supply voltage VDDmax VDD
0.3 to +7.0
V
Input voltage VIN1 CE, CL, DI
0.3 to +7.0
V
VIN2 OSC, KI1 to KI5, TEST, VDD1, VDD2
0.3 to VDD + 0.3
V
Output voltage VOUT1 DO
0.3 to +7.0
V
VOUT2 OSC, S1 to S16, COM1 to COM3, KS1 to KS4, P1 to P4
0.3 to VDD + 0.3
V
Output current IOUT1 S1 to S16
300
A
IOUT2 COM1 to COM3
3
mA
IOUT3 KS1 to KS4
1
mA
IOUT4 P1 to P4
5
mA
Allowable power dissipation Pdmax Ta=85°C

100
mW
Operating temperature Topr
40 to +85
Storage temperature Tstg
50 to +125



Description

The LC75893M is a 1/3 duty LCD display driver that can directly drive up to 48 segments and can control up to four general-purpose output ports. This product also incorporates a key scan circuit that accepts input from up to 20 keys to reduce printed circuit board wiring.
