Features: • Two sets of eight (or in the LC78213, seven) built-in circuits with three switching configurations available based on differing internal connections
• Control according to serial data sent from a microprocessor, and easy connection to 5 V microprocessors
• Two identical products can be connected to a shared bus due to the provision of a select pin (S).
• A reset pin that turns off all analog switches
• A ±20 V withstand voltage rating allows these products to provide a wide dynamic range.

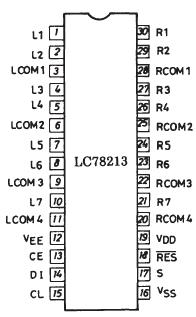

Application· Function switching under serial data control in amplifiers, receivers, and other electronic equipmentPinout
Specifications
| Parameter |
Symbol |
Conditions |
Ratings |
Unit |
| Maximum supply voltage |
VDD max |
VDD |
0.3 to +20 |
V |
| VEE max |
VEE |
20 to +0.3 |
V |
| Maximum input voltage |
VI1 |
DI, CL, CE, S, RES |
0.3 to +20 |
V |
| VI2 |
L1 to L8, R1 to R8, LCOM1 to LCOM4, RCOM1 to RCOM4 |
VEE0.3 to VDD + 0.3 |
V |
| Analog switch potential difference when on |
VON |
With the switch on |
0.5 |
V |
| Allowable power dissipation |
Pd max |
Ta 75°C |
100 |
mW |
| Operating temperature range |
Topr |
|
30 to +75 |
°C |
| Storage temperature range |
Tstg |
|
40 to +125 |
°C |
DescriptionThe LC78213 has the following features including (1)two sets of eight (or in the LC78213, seven) built-in circuits with three switching configurations available based on differing internal connections;(2)control according to serial data sent from a microprocessor, and easy connection to 5 V microprocessors;(3)two identical products can be connected to a shared bus due to the provision of a select pin (S);(4)a reset pin that turns off all analog switches.
