Part Number: LC80101M









Description: The LC80101M is a special-purpose descrambler LSI for use in VICS systems. FM multiplexed service data...


Urgent Purchase

LC80101M General Description


The LC80101M is a special-purpose descrambler LSI for use in VICS systems. FM multiplexed service data that has had VICS center scrambling applied can be descrambled and received by inserting this LSI in the serial interface between the LC72700E and the application CPU. This architecture also supports reception of regular transmissions that have not been scrambled. Note that sample evaluation and product manufacture using this LSI require a contract with the VICS Center organization.

LC80101M Maximum Ratings

Parameter
Symbol
Conditions
Ratings
Unit
Maximum supply voltage
VDDmax
VDD
0.3 to +7.0
V
Input voltage VIN1 The CL2, CE2, DI2, RST2, BACKUP, INT-R1, and DI1 pins 0.3 to +7.0
V
VIN2
Input pins other than VIN1
0.3 to VDD +0.3
V
Output voltage VOUT1 The DO2 pin 0.3 to +7.0
V
VOUT2 Output pins other than VOUT1 0.3 to VDD +0.3
V
Allowable power dissipation
Pd max
Ta 85°C
200
mA
Operating temperature
Topr
40 to +85
°C
Storage temperature
Tstg
55 to +125
°C

LC80101M Features

• VICS scrambled/unscrambled recognition circuit
• Dedicated VICS descrambler circuit
• CPU interface circuit (CCB: serial)

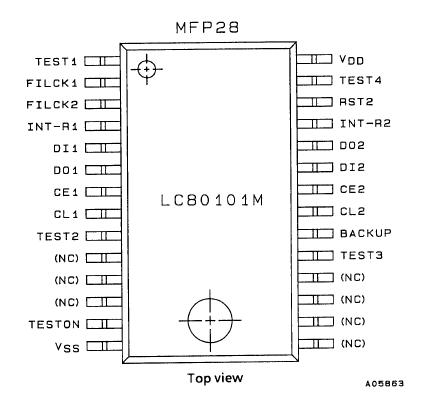

LC80101M Connection Diagram

LC80101M Connection Diagram
