LC86E7148

Features:

(1) Option switching by EPROM data
      The option function of the LC867100 series can be specified by the EPROM data.
      LC86E7148 can be checked the functions of the trial pieces using the mass production board.
(2) Internal EPROM capacity   : 49152 bytes
(3) Internal RAM capacity      : 1152 bytes Used EPROM or RAM capacity are equal ROM or RAM capacity of mask ROM version which applies LC86E7148.
(4) Operating supply voltage : 4.5V to 6.0V
(5) Instruction cycle time : 1s to 366s
(6) Operating temperature : +10°C to +40°C
(7) The pin compatible with the LC867100 series mask ROM devices
(8)Applicablemask ROM version:LC867148/LC867140/LC867132/LC867128/LC867124/LC867120/
LC867116/LC867112/LC867108
(9) Factory shipment : QIC80S

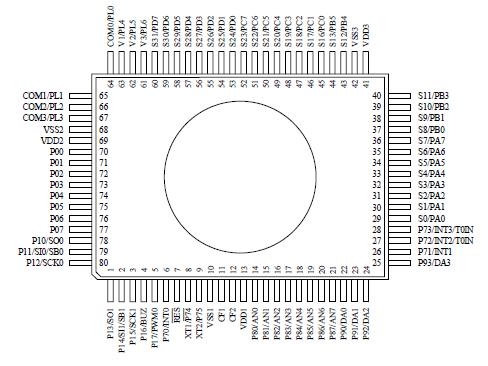

Pinout




Specifications

Parameter		Symbol	Pins	Conditions		Ratings			Unit
					VDD[V]	min.	typ.	max.
Supply voltage		VDDMAX	VDD1, VDD2 VDD3	VDD1=VDD2= VDD3		-0.3		+7.0	V
LCD display voltage		VLCD	V1/PL6,V2/PL5,V3/PL4	VDD1=VDD2= VDD3		-0.3		VDD
Input voltage		VI	•Ports 71, 72, 73 •Ports 74, 75 •Port 8, Port L •RES			-0.3		VDD+0.3
Input/output voltage		VIO	•Ports 0, 1 •Port 9 •Ports A, B, C, D			-0.3		VDD+0.3
High level output current	Peak output current	IOPH(1)	Ports 0, 1	•CMOS output •At each pins		-4			mA
		IOPH(2)	Ports A, B, C, D			-4
		IOPH(3)	Port 9			-4
	Total output current	IOAH(1)	Port 0, 1	Total all pins		-30
		IOAH(2)	Port A, B	Total all pins		-20
		IOAH(3)	Port C, D	Total all pins		-20
		IOAH(4)	Port 9	Total all pins		-20
Low level output current	Peak output current	IOPL(1)	Port 0, 1	At each pins				20
		IOPL(2)	Ports A, B, C, D	At each pins				20
		IOPL(3)	Port 9	At each pins				20
		IOPL(4)	Port 70	At each pins				15
	Total output current	IOAL(1)	Port 0, 1	Total all pins				40
		IOAL(2)	Port A, B	Total all pins				24
		IOAL(3)	Port C,D	Total all pins				24
		IOAL(4)	Port 9	Total all pins				15
		IOAL(5)	Port 70	Total all pins				10
Maximum power dissipation		Pdmax	QIC80S	Ta=+10 to+40°C				515	mW
Operating temperature range		Topr				+10		+40	°C
Storage temperature range		Tstg

Notes •The QFP packages should be heat-soaked for 12 hours at 125°C immediately prior to mounting (This baking is called pre-baking).
          •After pre-baking a controlled environment must be maintained until soldering. The environment must be held at a temperature of 30°C or less and a humidity level of 70% or less. Please solder within 24 hours.

Description

The LC86E7148 is a CMOS 8-bit single chip microcontroller with UVEPROM for the LC867100 series. This microcontroller has the function and the pin description of the LC867100 series mask ROM version, and 48K-byte EPROM.

The program data is rewritable. It is suitable to develop the program.
