Product Details

Description



Features:

(1) Option switching by PROM data
     The option function of the LC865400 series can be specified by the PROM data.
     The LC86P5420 can be checked the functions of the trial pieces using the mass production board.
(2) Internal one-time PROM capacity : 20736 bytes
(3) Internal RAM capacity : 512 bytes
(4) Operating supply voltage : 4.5V to 6.0V
(5) Instruction cycle time : 1.0ms to 366ms
(6) Operating temperature : -30°C to +70°C
(7) The pin and the package compatible with the LC865400 series mask ROM devices
(8) Applicable mask ROM version : LC865520 / LC865516 / LC865512 / LC865508 / LC865504
     LC865412 / LC865408 / LC865404
(9) Factory shipment : DIP42S, QFP48E


Pinout

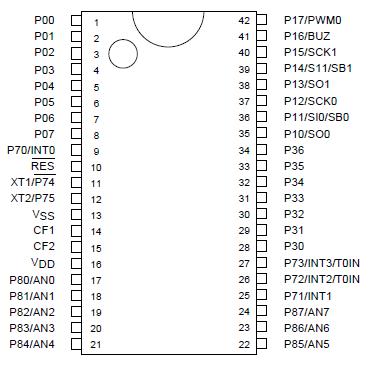

Connection Diagram
