LCA120L

Solid State Relays Single Pole

product image

LCA120L Picture
See larger image
SeekIC No. : 0093261 Detail

LCA120L: Solid State Relays Single Pole

LCA120L Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LCA120L
Mfg:
Clare
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product Type : PCB Mount Mounting Style : Through Hole
Load Voltage Rating : 250 V Load Current Rating : 150 mA
Package / Case : DIP Gull Wing

Description

Control Voltage Range :
Contact Form :
Output Device :
Product Type : PCB Mount
Mounting Style : Through Hole
Load Voltage Rating : 250 V
Load Current Rating : 150 mA
Package / Case : DIP Gull Wing


Features:

• Small 6 Pin DIP Package
• Low Drive Power Requirements (TTL/CMOS Compatible)
• No Moving Parts
• High Reliability
• Arc-Free With No Snubbing Circuits
• 3750VRMS Input/Output Isolation
• FCC Compatible
• VDE Compatible
• No EMI/RFI Generation
• Machine Insertable, Wave Solderable
• Current Limiting Surface Mount and Tape & Reel Versions Available


Application

• Telecommunications
• Telecom Switching
• Tip/Ring Circuits
• Modem Switching (Laptop, Notebook, Pocket
Size)
• Hookswitch
• Dial Pulsing
• Ground Start
• Ringer Injection
• Instrumentation
• Multiplexers
• Data Acquisition
• Electronic Switching
• I/O Subsystems
• Meters (Watt-Hour, Water, Gas)
• Medical Equipment-Patient/Equipment Isolation
• Security
• Aerospace
• Industrial Controls


Pinout

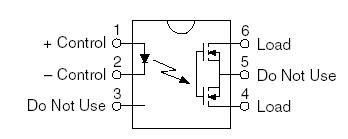

Connection Diagram


Specifications

Parameter Min Typ Max Units
Input Power Dissipation - - 1501 mW
Input Control Current
Peak (10ms)		 -
-		 -
-		 50
1		 mA
A
Reverse Input Voltage - - 5 V
Total Power Dissipation - - 8002 mW
Isolation Voltage
Input to Output		 3750 - - VRMS
Operational Temperature -40 - +85 °C
Storage Temperature -40 - +125 °C
Soldering Temperature
DIP Package
Flatpack/Surface Mount Pkg
(10 Seconds Max.)		 -
-		 -
-		 +260
+220		 °C
°C
1 Derate Linearly 1.33 mw/°C
2 Derate Linearly 6.67 mw/°C


Description

LCA120L is a 250V, 150mA, 20Ω 1-Form-A relay. It features enhanced peak load current capability. Current limiting version is available. ("L" suffix)




Parameters:

Technical/Catalog InformationLCA120L
VendorClare
CategoryRelays
Mounting TypeThrough Hole
Termination StylePC Pin
Package / Case6-DIP
CircuitSPST-NO (1 Form A)
Load Current150mA
Voltage - Input1.2VDC
Voltage - Load0 ~ 250 V
Output TypeAC, DC
On-State Resistance20 Ohm
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names LCA120L
LCA120L
